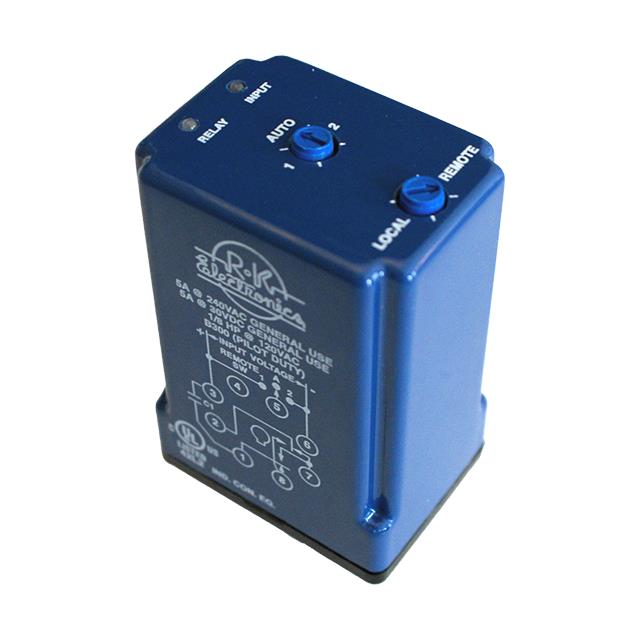

TDR-24/240V-AA8

Active

R-K Electronics, Inc.

RELAY GEN PURP SPDT 5A 24-240V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TDR-24/240V-AA8

Active

R-K Electronics, Inc.

RELAY GEN PURP SPDT 5A 24-240V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TDR-24/240V-AA8	TDR-24 Series

Circuit	-	DPDT (2 Form C)
Coil Type	Non Latching	Non Latching
Coil Voltage [Max]	240 VAC	240 VAC
Coil Voltage [Min]	24 VAC	24 VAC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Rating (Current)	5 A	5 A
Contact Rating @ Voltage	-	5 - 250 A
Delay Time	-	24 Hrs
Delay Time	-	0.1 Sec
Features	Lighted Indicator	Lighted Indicator
Function	-	Repeat Cycle, On-Delay, Off-Delay
Mounting Type	Socketable	Socketable
Operate Time	5 ms	5 ms
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	0 °C	0 °C
Relay Type	General Purpose	Mechanical Relay, General Purpose
Release Time	5 ms	5 ms
Switching Voltage [Max]	30 VDC, 250 VAC	30 - 250 VDC
Termination Style	Plug In, 8 Pin (Octal)	Plug In, 11 Pin (Octal), Plug In, 8 Pin (Octal)
Timing Adjustment Method	-	Screwdriver Slot, External Resistor
Timing Initiate Method	-	Input Voltage
Voltage - Supply	-	24 VAC
Voltage - Supply	-	240 VAC

TDR-24 Series

RELAY TIME DELAY 24HR 5A 250V

Part	Contact Rating @ Voltage	Relay Type	Delay Time [Max]	Delay Time [Min]	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Function	Mounting Type	Timing Adjustment Method	Circuit	Timing Initiate Method	Features	Switching Voltage [Max]	Coil Type	Operate Time	Release Time	Coil Voltage [Min]	Coil Voltage [Max]	Contact Rating (Current)	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]
R-K Electronics, Inc. TDR-24/240V-AR11	5 A, 30 VDC, 250 VAC	Mechanical Relay	24 Hrs	0.1 Sec	Plug In, 11 Pin (Octal)	24 VAC	240 VAC	Repeat Cycle	Socketable	Screwdriver Slot	DPDT (2 Form C)	Input Voltage
R-K Electronics, Inc. TDR-24/240V-AX11-0001	5 A, 30 VDC, 250 VAC	Mechanical Relay	24 Hrs	0.1 Sec	Plug In, 11 Pin (Octal)	24 VAC	240 VAC		Socketable	Screwdriver Slot	DPDT (2 Form C)	Input Voltage
R-K Electronics, Inc. TDR-24/240V-AA11		General Purpose			Plug In, 11 Pin (Octal)				Socketable				Lighted Indicator	30 VDC, 250 VAC	Non Latching	5 ms	5 ms	24 VAC	240 VAC	5 A	SPDT (1 Form C)	65 °C	0 °C
R-K Electronics, Inc. TDR-24/240V-AC8	5 A, 30 VDC, 250 VAC	Mechanical Relay	24 Hrs	0.1 Sec	Plug In, 8 Pin (Octal)	24 VAC	240 VAC	On-Delay	Socketable	Screwdriver Slot	DPDT (2 Form C)	Input Voltage
R-K Electronics, Inc. TDR-24/240V-AF8	5 A, 30 VDC, 250 VAC	Mechanical Relay	24 Hrs	0.1 Sec	Plug In, 8 Pin (Octal)	24 VAC	240 VAC	Off-Delay	Socketable	Screwdriver Slot	DPDT (2 Form C)	Input Voltage
R-K Electronics, Inc. TDR-24/240V-RC11	5 A, 30 VDC, 250 VAC	Mechanical Relay	24 Hrs	0.1 Sec	Plug In, 11 Pin (Octal)	24 VAC	240 VAC	On-Delay	Socketable	External Resistor	DPDT (2 Form C)	Input Voltage
R-K Electronics, Inc. TDR-24/240V-AA8-X		General Purpose			Plug In, 8 Pin (Octal)				Socketable				Lighted Indicator	30 VDC, 250 VAC	Non Latching	5 ms	5 ms	24 VAC	240 VAC	5 A	SPDT (1 Form C)	65 °C	0 °C
R-K Electronics, Inc. TDR-24/240V-AX8-0002	5 A, 30 VDC, 250 VAC	Mechanical Relay	24 Hrs	0.1 Sec	Plug In, 8 Pin (Octal)	24 VAC	240 VAC		Socketable	Screwdriver Slot	DPDT (2 Form C)	Input Voltage
R-K Electronics, Inc. TDR-24/240V-AA8		General Purpose			Plug In, 8 Pin (Octal)				Socketable				Lighted Indicator	30 VDC, 250 VAC	Non Latching	5 ms	5 ms	24 VAC	240 VAC	5 A	SPDT (1 Form C)	65 °C	0 °C
R-K Electronics, Inc. TDR-24/240V-AR8	5 A, 30 VDC, 250 VAC	Mechanical Relay	24 Hrs	0.1 Sec	Plug In, 8 Pin (Octal)	24 VAC	240 VAC	Repeat Cycle	Socketable	Screwdriver Slot	DPDT (2 Form C)	Input Voltage

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 140.00
		5	$ 126.00
		10	$ 113.40

Description

General part information

TDR-24 Series

General Purpose Relay SPDT (1 Form C) 24 ~ 240VAC/DC Coil Socketable
