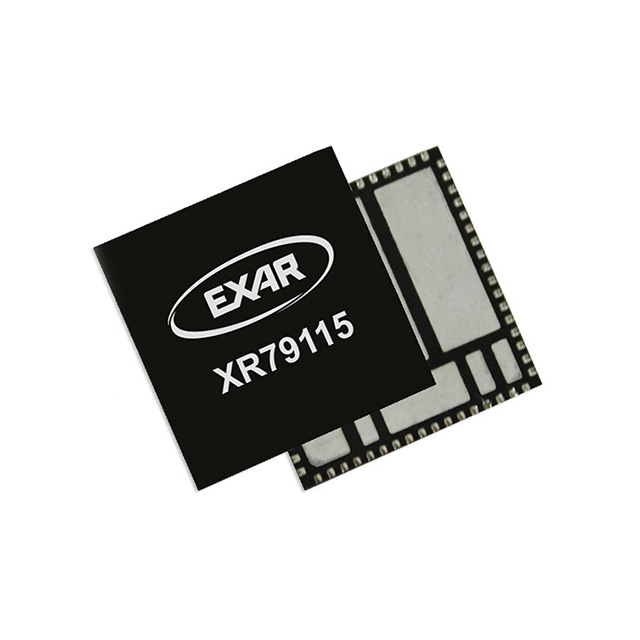

XR79115EL-F
ActiveMaxLinear, Inc.
DC DC CONVERTER 0.6-5.5V
Deep-Dive with AI
Search across all available documentation for this part.
XR79115EL-F
ActiveMaxLinear, Inc.
DC DC CONVERTER 0.6-5.5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XR79115EL-F |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 15 A |
| Efficiency | 96 % |
| Features | OCP, UVLO, OTP, SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 68-PowerBQFN Module |
| Size / Dimension [x] | 0.47 in |
| Size / Dimension [x] | 12 mm |
| Size / Dimension [y] | 12 mm |
| Size / Dimension [y] | 0.47 " |
| Size / Dimension [z] | 4 mm |
| Size / Dimension [z] | 0.16 in |
| Supplier Device Package | 68-QFN (12x12) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 22 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 14.10 | |
| 10 | $ 12.86 | |||
Description
General part information
XR79115EL-F
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 15A 4.5V - 22V Input
Documents
Technical documentation and resources
No documents available
