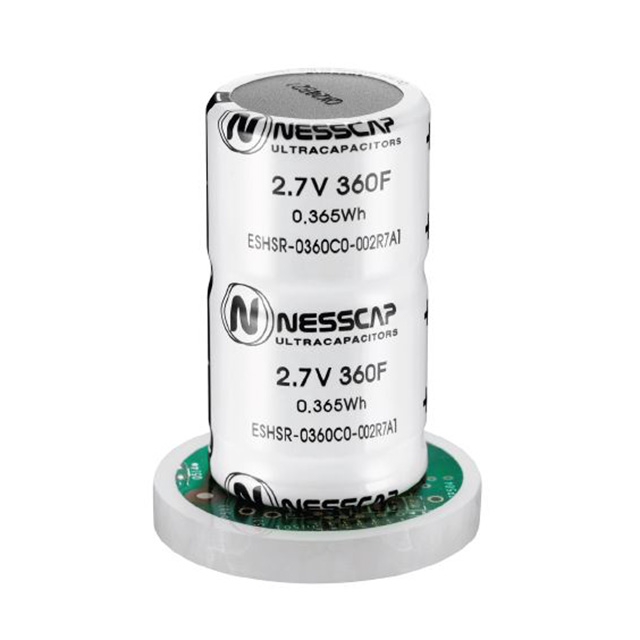

BCAP0360 P270 S18
ActiveMaxwell Technologies
CAP 360F 0% +20% 2.7V T/H
BCAP0360 P270 S18
ActiveMaxwell Technologies
CAP 360F 0% +20% 2.7V T/H
Description
General part information
BCAP0360 P270 S18
360 F (EDLC) Supercapacitor 2.7 V Radial, Can - Snap-In 3.2mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | BCAP0360 P270 S18 |
|---|---|
| Capacitance | 360 F |
| ESR (Equivalent Series Resistance) | 3.2 mOhm |
| Height - Seated (Max) | 2.52 in |
| Lead Spacing | 0.886 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Size / Dimension Diameter | 1.378 in |
| Termination | PC Pins |
| Tolerance (Negative) | 0 % |
| Tolerance (Positive) | 20 % |
| Voltage - Rated | 2.7 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
