DSPIC33CK512MP405-I/M7
ActiveISO 26262-AND IEC 61508-COMPLIANT 100 MHZ SINGLE-CORE DSC
Deep-Dive with AI
Search across all available documentation for this part.
DSPIC33CK512MP405-I/M7
ActiveISO 26262-AND IEC 61508-COMPLIANT 100 MHZ SINGLE-CORE DSC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DSPIC33CK512MP405-I/M7 | dsPIC33CK512MP405 Series |
|---|---|---|
| Connectivity | SPI, UART/USART, I2C, LINbus, QEI, Smart Card | SPI, UART/USART, I2C, LINbus, QEI, Smart Card |
| Core Processor | dsPIC | dsPIC |
| Core Size | 16-Bit | 16-Bit |
| Data Converters | D/A 6x12b, A/D 19x12b SAR | D/A 6x12b, A/D 19x12b SAR |
| Mounting Type | Wettable Flank, Surface Mount | Wettable Flank, Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | External, Internal | External, Internal |

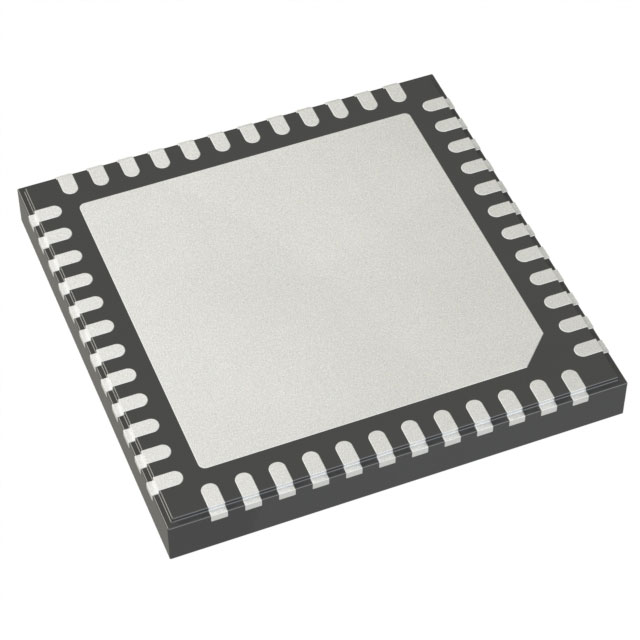

| Package / Case | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad, 48-TQFP |
| Peripherals | QEI, WDT, PWM, POR, Motor Control PWM, I2S, DMA, Brown-out Detect/Reset | QEI, WDT, PWM, POR, Motor Control PWM, I2S, DMA, Brown-out Detect/Reset |
| Program Memory Size | 512 KB | 512 KB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 128 K | 128 K |
| Speed | 100 MIPs | 100 MIPs |
| Supplier Device Package | 48-VQFN (6x6) | 48-VQFN (6x6), 48-TQFP (7x7) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 183 | $ 4.70 | |
| Microchip Direct | TUBE | 1 | $ 5.67 | |
| 25 | $ 5.19 | |||
| 100 | $ 4.70 | |||
| 1000 | $ 4.33 | |||
| 5000 | $ 4.12 | |||
dsPIC33CK512MP405 Series
ISO 26262-and IEC 61508-Compliant 100 MHz Single-Core DSC
| Part | Supplier Device Package | Program Memory Size | Oscillator Type | Connectivity | Peripherals | Mounting Type | Data Converters | Core Processor | Program Memory Type | RAM Size | Speed | Package / Case | Core Size | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology DSPIC33CK512MP405-E/M7 | 48-VQFN (6x6) | 512 KB | External, Internal | I2C, LINbus, QEI, Smart Card, SPI, UART/USART | Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, QEI, WDT | Surface Mount, Wettable Flank | A/D 19x12b SAR, D/A 6x12b | dsPIC | FLASH | 128 K | 100 MIPs | 48-VFQFN Exposed Pad | 16-Bit | -40 °C | 125 °C |
Microchip Technology DSPIC33CK512MP405-E/PT | 48-TQFP (7x7) | 512 KB | External, Internal | I2C, LINbus, QEI, Smart Card, SPI, UART/USART | Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, QEI, WDT | Surface Mount | A/D 19x12b SAR, D/A 6x12b | dsPIC | FLASH | 128 K | 100 MIPs | 48-TQFP | 16-Bit | -40 °C | 125 °C |
Microchip Technology DSPIC33CK512MP405-I/M7 | 48-VQFN (6x6) | 512 KB | External, Internal | I2C, LINbus, QEI, Smart Card, SPI, UART/USART | Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, QEI, WDT | Surface Mount, Wettable Flank | A/D 19x12b SAR, D/A 6x12b | dsPIC | FLASH | 128 K | 100 MIPs | 48-VFQFN Exposed Pad | 16-Bit | -40 °C | 85 °C |
Microchip Technology DSPIC33CK512MP405-I/PT | 48-TQFP (7x7) | 512 KB | External, Internal | I2C, LINbus, QEI, Smart Card, SPI, UART/USART | Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, QEI, WDT | Surface Mount | A/D 19x12b SAR, D/A 6x12b | dsPIC | FLASH | 128 K | 100 MIPs | 48-TQFP | 16-Bit | -40 °C | 85 °C |
Description
General part information
dsPIC33CK512MP405 Series
Microchip’s dsPIC33CK family of digital signal controllers (DSCs) features a single 100 MHz dsPIC® DSC core with integrated DSP and enhanced on-chip peripherals for advanced sensing and control, touch, robust general embedded, motor control, digital power and high-performance embedded applications. The DSCs feature advanced analog for advanced sensor interfacing designs. Offering real-time deterministic performance, the DSCs enable high-performance control applications.
Integrated with hardware peripherals that enable robust and complex touch-sensing designs, these [**core-independent touch DSCs**](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/dspic-dscs/applications/capacitive-touch/) can address additional design requirements involving AUTOSAR, functional safety, security, and CAN/CAN FD.
These DSCs enable the design of high-performance, precision motor control systems that are more energy efficient, quieter in operation and provide extended motor life. They can be used to control BLDC, PMSM, ACIM, SR and stepper motors.
