SE20NDHM3/I
ActiveVishay General Semiconductor - Diodes Division
DIODE GEN PURP 200V 2A DFN3820A
SE20NDHM3/I
ActiveVishay General Semiconductor - Diodes Division
DIODE GEN PURP 200V 2A DFN3820A
Description
General part information
SE20NDHM3/I

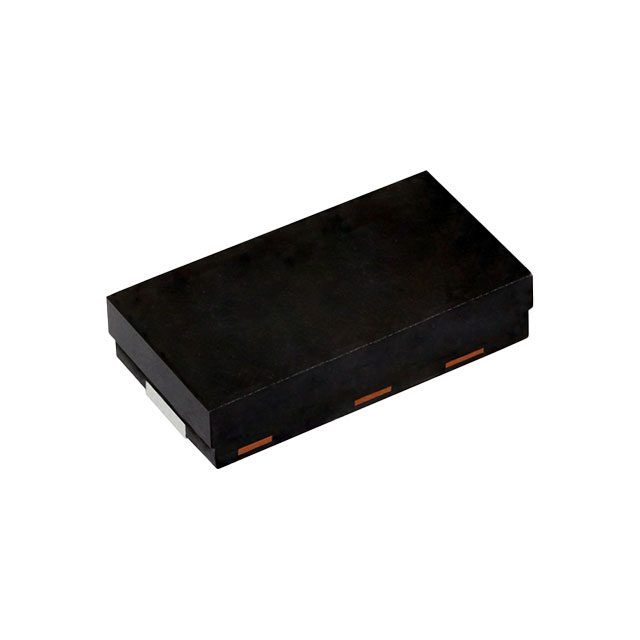

Diode 200 V 2A Surface Mount, Wettable Flank DFN3820A
Technical Specifications
Parameters and characteristics for this part
| Specification | SE20NDHM3/I |
|---|---|
| Capacitance | 12 pF |
| Current - Average Rectified (Io) | 2 A |
| Current - Reverse Leakage | 5 µA |
| Grade | Automotive |
| Mounting Type | Wettable Flank, Surface Mount |
| Operating Temperature - Junction (Max) | 175 °C |
| Operating Temperature - Junction (Min) | -55 °C |
| Package / Case | 2-VDFN |
| Package Name | DFN3820A |
| Qualification | AEC-Q101 |
| Reverse Recovery Time (trr) | 1.2 µs |
| Speed | Standard Recovery |
| Speed - Fast Recovery (Minimum) | 200 mA, 500 ns |
| Speed - Recovery Current | 200 mA, 200 mA |
| Speed - Recovery Time | 500 ns |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) | 1.1 V |
