2281610
ObsoletePhoenix Contact
INTERFACE MOD HDR 64POS 12-24AWG
2281610
ObsoletePhoenix Contact
INTERFACE MOD HDR 64POS 12-24AWG
Description
General part information
2281610

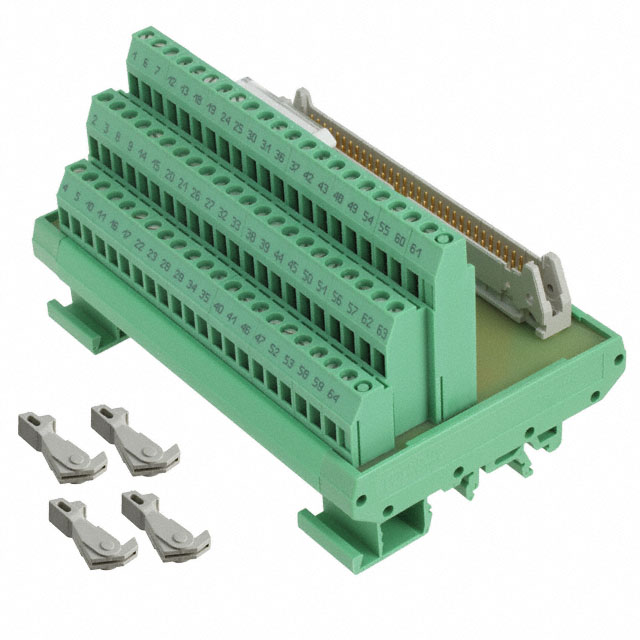

64 Position Interface Module Terminal Blocks - Screw Connection To Rectangular, Male 12-24 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 2281610 |
|---|---|
| Control Side Cable Retainer Type | Latches |
| Control Side Connection Gender | Male |
| Control Side Connection Shape | Rectangular |
| Current Rating (Per Contact) | 1 A |
| Features | Label Holder |
| Length | 4.902 in |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Positions / Poles | 64 |
| Process Side Connection | Terminal Blocks, Screw Connection |
| Voltage - Rated | 60 VDC |
| Width | 3.031 in |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
