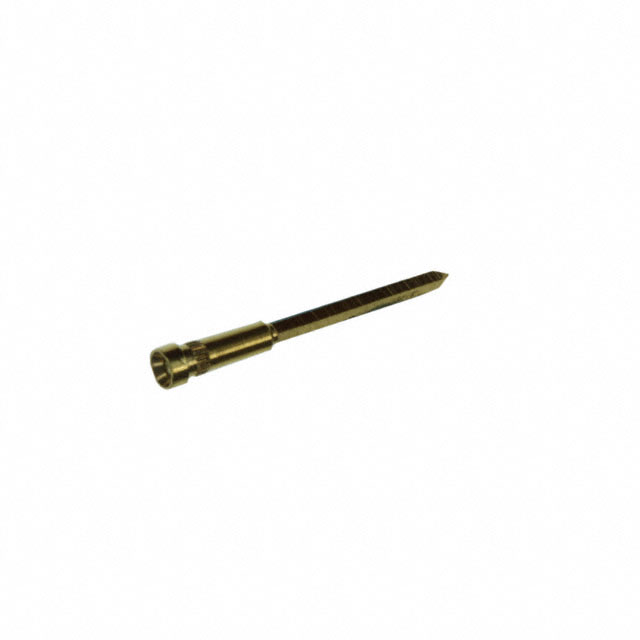

0039-2-17-01-30-27-02-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Search across all available documentation for this part.

0039-2-17-01-30-27-02-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0039-2-17-01-30-27-02-0	0039-2 Series

Accepts Pin Diameter [Max]	0.025 "	0.025 "
Accepts Pin Diameter [Max]	0.64 mm	0.64 mm
Accepts Pin Diameter [Min]	0.015 "	0.015 "
Accepts Pin Diameter [Min]	0.38 mm	0.38 mm
Contact Finish	Gold	Gold, Tin-Lead, Unplated
Contact Finish Thickness	0.76 Ám	0.25 - 2.54 Ám
Contact Finish Thickness	30 Áin	10 - 100 Áin
Contact Material	Beryllium Copper	Beryllium Copper
Flange Diameter [diameter]	1.83 mm	1.83 mm
Flange Diameter [diameter]	0.072 in	0.072 in
Length - Overall [x]	14.22 mm	14.22 mm
Length - Overall [x]	0.56 in	0.56 in
Mounting Hole Diameter [diameter]	0.057 "	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm	1.45 mm
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Socket Depth	0.162 in	0.162 in
Socket Depth	4.12 mm	4.12 mm
Tail Diameter	0.64 mm	0.64 mm
Tail Diameter	0.025 in	0.025 in
Tail Type	Wire Wrap	Wire Wrap
Termination	Press-Fit	Press-Fit

0039-2 Series

CONN PIN RCPT .015-.025 PRESSFIT

Part	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Length - Overall [x]	Length - Overall [x]	Tail Type	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Tail Diameter	Tail Diameter	Contact Material	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 0039-2-17-01-30-27-02-0	0.76 Ám	30 Áin	0.162 in	4.12 mm	14.22 mm	0.56 in	Wire Wrap	0.025 "	0.64 mm	0.015 "	0.38 mm	-55 °C	125 °C	0.64 mm	0.025 in	Beryllium Copper	Press-Fit	1.83 mm	0.072 in	Gold	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 0039-2-17-15-30-14-02-0	0.25 Ám	10 Áin	0.162 in	4.12 mm	14.22 mm	0.56 in	Wire Wrap	0.025 "	0.64 mm	0.015 "	0.38 mm	-55 °C	125 °C	0.64 mm	0.025 in	Beryllium Copper	Press-Fit	1.83 mm	0.072 in	Gold	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 0039-2-17-15-30-27-02-0	0.76 Ám	30 Áin	0.162 in	4.12 mm	14.22 mm	0.56 in	Wire Wrap	0.025 "	0.64 mm	0.015 "	0.38 mm	-55 °C	125 °C	0.64 mm	0.025 in	Beryllium Copper	Press-Fit	1.83 mm	0.072 in	Gold	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 0039-2-17-80-30-27-02-0	0.76 Ám	30 Áin	0.162 in	4.12 mm	14.22 mm	0.56 in	Wire Wrap	0.025 "	0.64 mm	0.015 "	0.38 mm	-55 °C	125 °C	0.64 mm	0.025 in	Beryllium Copper	Press-Fit	1.83 mm	0.072 in	Gold	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 0039-2-17-01-30-02-02-0	2.54 µm	100 µin	0.162 in	4.12 mm	14.22 mm	0.56 in	Wire Wrap	0.025 "	0.64 mm	0.015 "	0.38 mm	-55 °C	125 °C	0.64 mm	0.025 in	Beryllium Copper	Press-Fit	1.83 mm	0.072 in	Tin-Lead	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 0039-2-05-15-00-00-01-0					14.22 mm	0.56 in	Wire Wrap										Press-Fit	1.83 mm	0.072 in	Unplated	0.057 "	1.45 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.45
		10	$ 0.38
		25	$ 0.33
		50	$ 0.31
		100	$ 0.29
		250	$ 0.26
		500	$ 0.25
		1000	$ 0.21
		3000	$ 0.19

Description

General part information

0039-2 Series

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Wire Wrap Press-Fit
