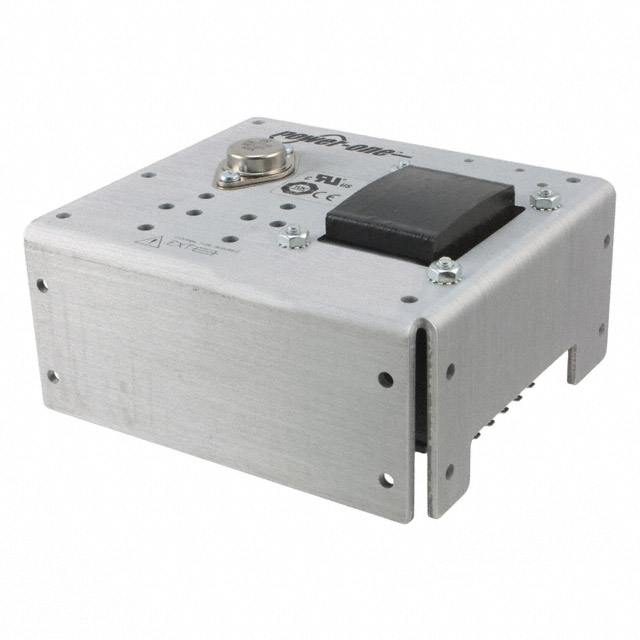

HB24-1.2-AG

Active

Bel Power Solutions

AC/DC CONVERTER 24V 29W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 24V 29W

Technical Specifications

Parameters and characteristics for this part

Specification	HB24-1.2-AG

Applications	ITE (Commercial)
Approval Agency	UL, CSA, CE
Current - Output 1	1.2 A
Efficiency	60 %
Features	Remote Sense, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	29 W
Size / Dimension [x]	4.87 "
Size / Dimension [x]	123.7 mm
Size / Dimension [y]	101.6 mm
Size / Dimension [y]	4 "
Size / Dimension [z]	53.3 mm
Size / Dimension [z]	2.1 "
Standard Number	60950-1, 62368-1
Type	Linear
Voltage - Input	240 VAC, 120 VAC, 220 VAC, 230 VAC, 100 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	24 V

AC/DC CONVERTER 24V 29W

Part	Voltage - Input	Features	Approval Agency	Current - Output 1	Applications	Number of Outputs	Type	Voltage - Output 1	Voltage - Isolation	Efficiency	Standard Number	Power (Watts)	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
Bel Power Solutions HB24-1.2-AG	100 VAC, 120 VAC, 220 VAC, 230 VAC, 240 VAC	Adjustable Output, Remote Sense	CE, CSA, UL	1.2 A	ITE (Commercial)	1	Linear	24 V	4.242 kV	60 %	60950-1, 62368-1	29 W	Chassis Mount	53.3 mm	101.6 mm	4.87 "	4 "	2.1 "	123.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear AC DC Converters 1 Output 24V 100, 120, 220, 230, 240 VAC Input
