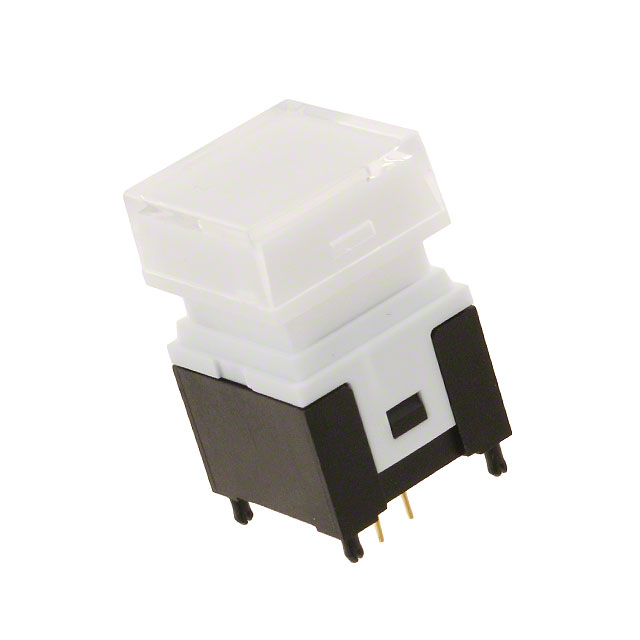

KP0115ANBKG03CF-2FJB
ObsoleteNKK Switches
SWITCH PUSH SPST-NO 0.1A 12V
KP0115ANBKG03CF-2FJB
ObsoleteNKK Switches
SWITCH PUSH SPST-NO 0.1A 12V
Description
General part information
KP0115ANBKG03CF-2FJB
Pushbutton Switch SPST-NO Standard, Illuminated Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | KP0115ANBKG03CF-2FJB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Square, Button |
| Circuit | SPST-NO |
| Color | Green, Red |
| Color - Actuator/Cap | Clear (White Filter/Diffuser) |
| Current Rating | 100 mA |
| Electrical Life (Cycles) | 5000000 Cycles |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 2.1 VDC, 3.5 VDC |
| Illumination Voltage (Nominal) | 2.1, 3.5 VDC |
| Mechanical Life (Cycles) | 5000000 Cycles |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Type | Standard, Illuminated |
| Voltage Rating - DC | 12 V |
