BTT60302ERBXUMA1

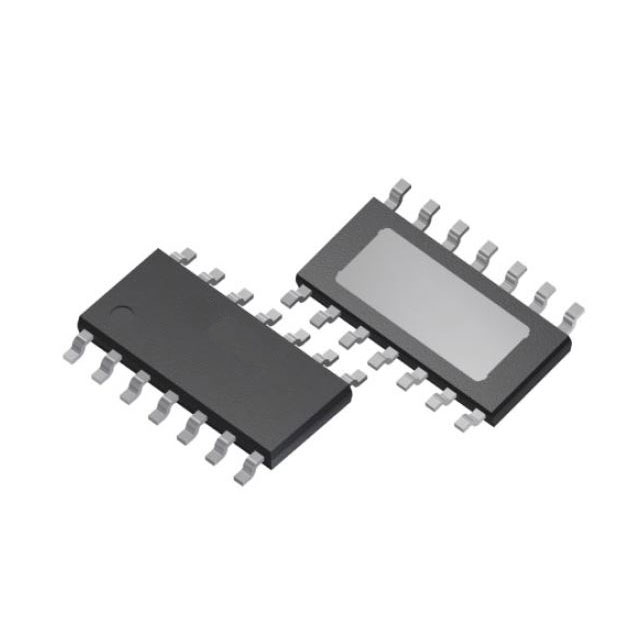

ActiveTHE BTT6030-2ERB IS A 32MΩ DUAL CHANNEL SMART HIGH-SIDE POWER SWITCH, EMBEDDED IN A PG-TDSO-14, EXPOSED PAD PACKAGE, PROVIDING PROTECTIVE FUNCTIONS AND DIAGNOSIS
Deep-Dive with AI
Search across all available documentation for this part.
BTT60302ERBXUMA1
ActiveTHE BTT6030-2ERB IS A 32MΩ DUAL CHANNEL SMART HIGH-SIDE POWER SWITCH, EMBEDDED IN A PG-TDSO-14, EXPOSED PAD PACKAGE, PROVIDING PROTECTIVE FUNCTIONS AND DIAGNOSIS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BTT60302ERBXUMA1 |
|---|---|
| Current - Output (Max) [Max] | 4 A |
| Fault Protection | Current Limiting (Fixed), Over Voltage, Over Temperature, Open Load Detect |
| Grade | Automotive |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Package / Case | 14-SOIC Exposed Pad |
| Package / Case | 0.154 in |
| Package / Case [custom] | 3.9 mm |
| Qualification | AEC-Q100 |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 32 mOhm |
| Supplier Device Package | PG-TDSO-14-31 |
| Switch Type | General Purpose |
| Voltage - Load [Max] | 36 V |
| Voltage - Load [Min] | 5 V |
| Voltage - Supply (Vcc/Vdd) | False |
