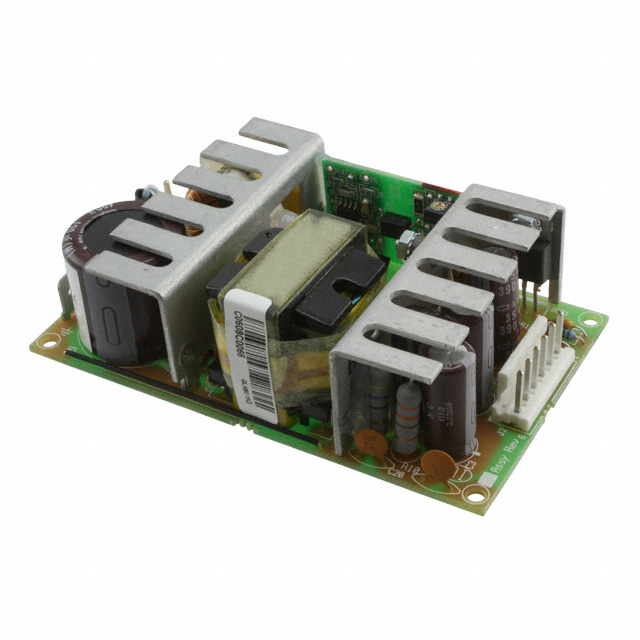

GLM50-15G
ObsoleteSL POWER / Advanced Energy
AC/DC CONVERTER 15V 50W
GLM50-15G
ObsoleteSL POWER / Advanced Energy
AC/DC CONVERTER 15V 50W
Description
General part information
GLM50-15G
Open Frame AC DC Converters 1 Output 15V 85 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | GLM50-15G |
|---|---|
| Applications | Medical |
| Approval Agency | cURus, TUV, CE |
| Current - Output 1 | 3.3 A |
| Efficiency | 85 % |
| Features | Universal Input, Adjustable Output |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 50 W |
| Size / Dimension Height | 1.25 in |
| Size / Dimension Length | 4.25 in |
| Size / Dimension Width | 2.5 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output 1 | 15 V |
