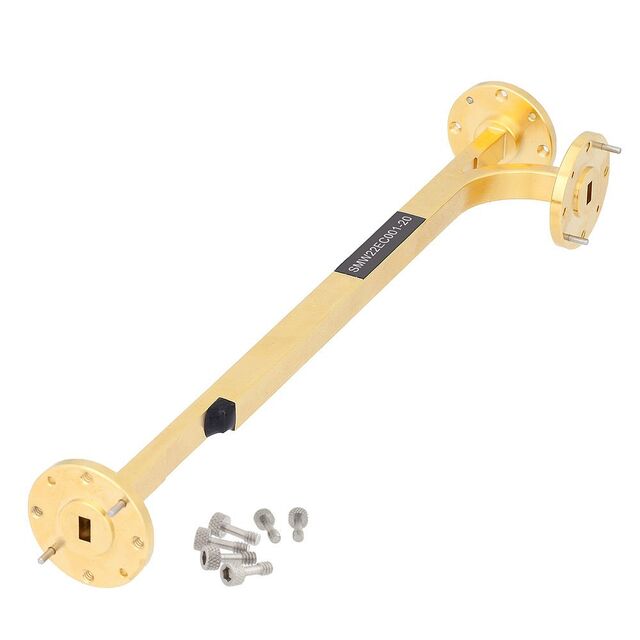

SMW22EC001-20
ObsoleteFairview Microwave
WG COUPLER WR-22 33-50 GHZ 20 DB
SMW22EC001-20
ObsoleteFairview Microwave
WG COUPLER WR-22 33-50 GHZ 20 DB
Description
General part information
SMW22EC001-20
RF Directional Coupler General Purpose 33GHz ~ 50GHz 20 ± 1dB Module
Technical Specifications
Parameters and characteristics for this part
| Specification | SMW22EC001-20 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 20 dB |
| Coupling Factor Tolerance | 1 dB |
| Frequency (Max) | 50 GHz |
| Frequency (Min) | 33 GHz |
| Insertion Loss | 0.8 dB |
| Package / Case | Module |
| Package Name | Module |
