1376135-2
ActiveTE Connectivity AMP Connectors

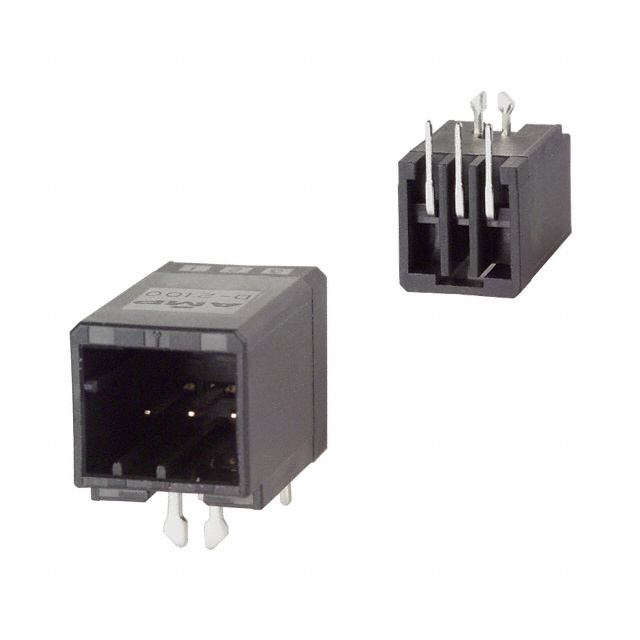

CONN HEADER R/A 3POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1376135-2
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 3POS 2.5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1376135-2 | 1376135 Series |
|---|---|---|
| Applications | General Purpose, Industrial | General Purpose, Industrial |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Length - Post | 3.33 mm | 3.33 mm |
| Contact Length - Post | 0.131 " | 0.131 " |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Rectangular | Rectangular |
| Contact Type | Tab | Tab |
| Current Rating (Amps) | 5 A | 5 A |
| Fastening Type | Detent Lock | Detent Lock |
| Insulation Color | Black | Black |
| Insulation Height | 0.431 in | 0.431 in |
| Insulation Height | 10.95 mm | 10.95 mm |
| Insulation Material | Thermoplastic, Glass Filled, Polyester | Thermoplastic, Glass Filled, Polyester |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 2.5 mm | 2.5 mm |
| Pitch - Mating | 0.098 in | 0.098 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
| Voltage Rating | 250 VDC | 250 VDC |
1376135 Series
CONN HEADER R/A 3POS 2.5MM
| Part | Style | Number of Positions Loaded | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Termination | Material Flammability Rating | Voltage Rating | Pitch - Mating | Pitch - Mating | Mounting Type | Fastening Type | Contact Finish - Post | Insulation Height | Insulation Height | Connector Type | Number of Rows | Contact Type | Contact Material | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Applications | Insulation Color | Current Rating (Amps) | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1376135-1 | Board to Board, Cable | All | Glass Filled, Polyester, Thermoplastic | 15 µin | 0.38 µm | Rectangular | Solder | UL94 V-0 | 250 VDC | 2.5 mm | 0.098 in | Through Hole, Right Angle | Detent Lock | Tin | 0.431 in | 10.95 mm | Header | 1 | Tab | Copper Alloy | Gold | 105 ░C | -55 °C | Shrouded - 4 Wall | General Purpose, Industrial | Black | 5 A | 3.33 mm | 0.131 " |
TE Connectivity AMP Connectors 1376135-2 | Board to Board, Cable | All | Glass Filled, Polyester, Thermoplastic | 15 µin | 0.38 µm | Rectangular | Solder | UL94 V-0 | 250 VDC | 2.5 mm | 0.098 in | Through Hole, Right Angle | Detent Lock | Tin | 0.431 in | 10.95 mm | Header | 1 | Tab | Copper Alloy | Gold | 105 ░C | -55 °C | Shrouded - 4 Wall | General Purpose, Industrial | Black | 5 A | 3.33 mm | 0.131 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.56 | |
| 46 | $ 1.39 | |||
| 138 | $ 1.26 | |||
| 506 | $ 1.25 | |||
Description
General part information
1376135 Series
Connector Header Through Hole, Right Angle 3 position 0.098" (2.50mm)
