120591-1
ActiveTE Connectivity AMP Connectors

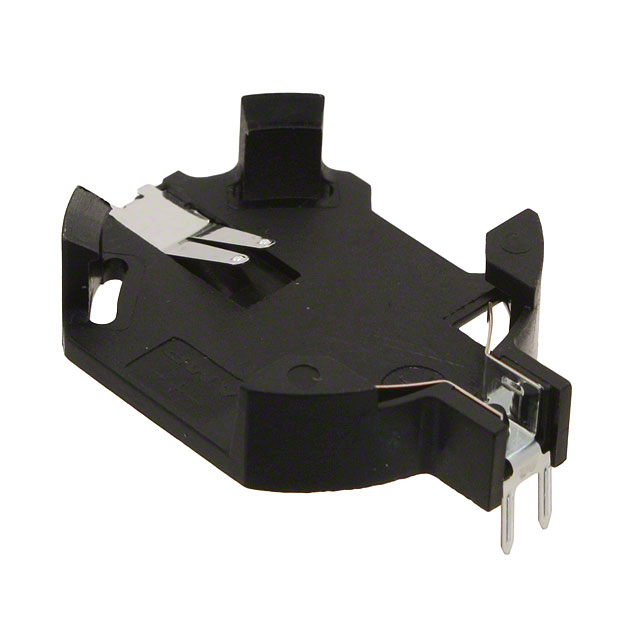

BATTERY HOLDER COIN 20MM PC PIN
Deep-Dive with AI
Search across all available documentation for this part.
120591-1
ActiveTE Connectivity AMP Connectors
BATTERY HOLDER COIN 20MM PC PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 120591-1 |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size | 20 mm |
| Battery Series | 2032 |
| Battery Type, Function | Holder, Coin Cell |
| Height Above Board | 0.249 in |
| Height Above Board | 6.32 mm |
| Number of Cells | 1 |
| Style | Holder (Open) |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.02 | |
| 10 | $ 2.51 | |||
| 50 | $ 2.20 | |||
| 100 | $ 1.86 | |||
| 144 | $ 2.02 | |||
| 250 | $ 1.73 | |||
| 288 | $ 1.91 | |||
| 500 | $ 1.63 | |||
| 576 | $ 1.81 | |||
| 1000 | $ 1.54 | |||
| 1008 | $ 1.73 | |||
| 2500 | $ 1.43 | |||
| 2592 | $ 1.60 | |||
| 5000 | $ 1.36 | |||
| 5040 | $ 1.52 | |||
120591 Series
BATTERY HOLDER COIN 20MM PC PIN
| Part | Number of Cells | Termination Style | Battery Type, Function | Battery Series | Style | Battery Cell Size | Battery Cell Size | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 120591-1 | 1 | PC Pin | Coin Cell, Holder | 2032 | Holder (Open) | Coin | 20 mm | 0.249 in | 6.32 mm |
Description
General part information
120591 Series
Battery Holder (Open) Coin, 20.0mm 1 Cell PC Pin
Documents
Technical documentation and resources
No documents available
