B65887E0000R041
ActiveEPCOS - TDK Electronics

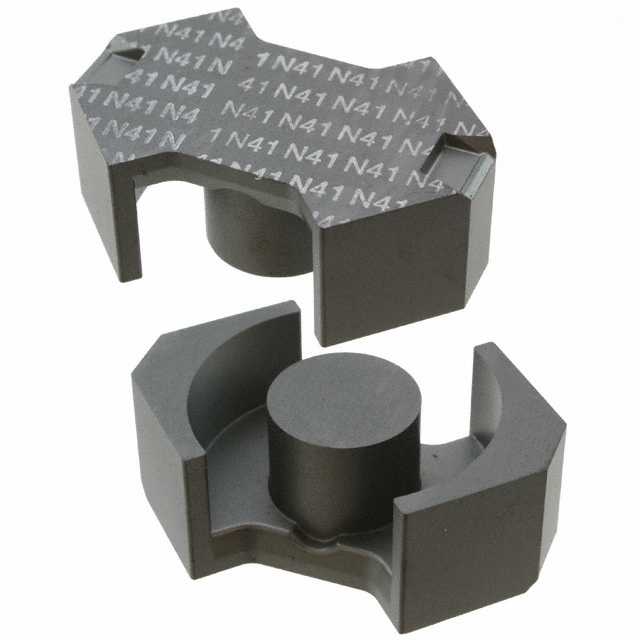

FERRITE CORE RM 6.8UH N41 2PCS
B65887E0000R041
ActiveEPCOS - TDK Electronics
FERRITE CORE RM 6.8UH N41 2PCS
Description
General part information
B65887E0000R041
Uncoated N41 Ferrite Core RM Type 1.661" (42.20mm) Length 0.748" (19.00mm) Width Diameter 0.594" (15.10mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | B65887E0000R041 |
|---|---|
| Core Factor (ΣI/A) mm⁻¹ | 0.35 mm⁻¹ |
| Core Type | RM |
| Effective Area (Ae) | 200 mm² |
| Effective Length (le) | 70 mm |
| Effective Magnetic Volume (Ve) | 14000 mm³ |
| Effective Permeability (µe) | 1890 |
| Finish | Uncoated |
| Gap | Ungapped |
| Height | 0.594 in |
| Inductance Factor (Al) | 6.8 µH |
| Initial Permeability (µi) | 2800 |
| Length | 1.661 in |
| Material | N41 |
| Minimum Core Cross Section (Amin) (mm²) | 170 mm² |
| Package Name | RM 14 |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 30 % |
| Width | 0.748 in |
