ActiveTE Connectivity AMP Connectors

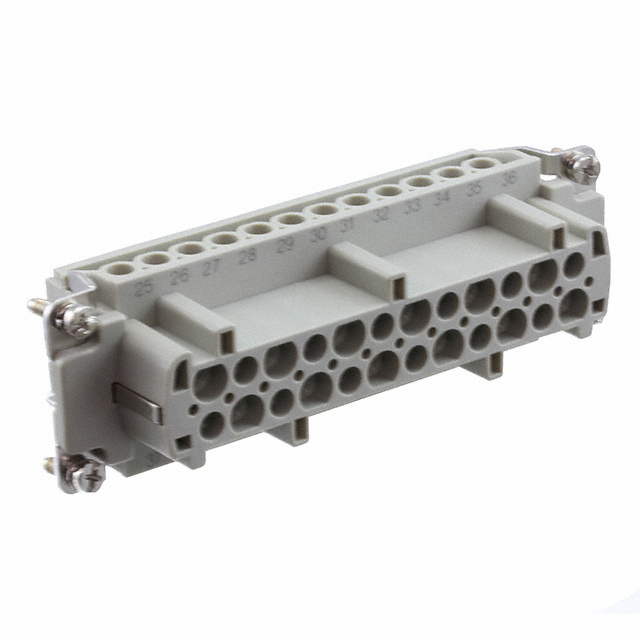

INSERT FEMALE 24POS+GND SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHE-024-F 25-48
T2040482201-000
ActiveTE Connectivity AMP Connectors
INSERT FEMALE 24POS+GND SCREW
Deep-Dive with AI
DocumentsHE-024-F 25-48
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T2040482201-000 | T204 Series |
|---|---|---|
| Color | - | Gray |
| Connector Type | - | Insert without Contacts |
| Contact Finish | Silver | Silver, Gold |
| Contact Finish Thickness | - | 0.75 - 2 µm |
| Contact Finish Thickness | - | 29.5 - 78.7 µin |
| Contact Material | - | Brass |
| Contact Termination | - | Crimp |
| Contact Type | - | DE, CE |
| Current Rating (Amps) | 16 A | 16 A |
| Gender | Female | Male, Female |
| Housing Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions | - | 6+Ground, 10+Ground, 16+Ground |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pin or Socket | - | Socket, Pin |
| Size | H24B | H24B, H6B, H10B, H16B |
| Termination Style | Screw | Crimp, Screw |
| Voltage Rating | 500 V | 500 V |
| Wire Gauge | - | 8 - 16 AWG |
