1043414
ActivePhoenix Contact

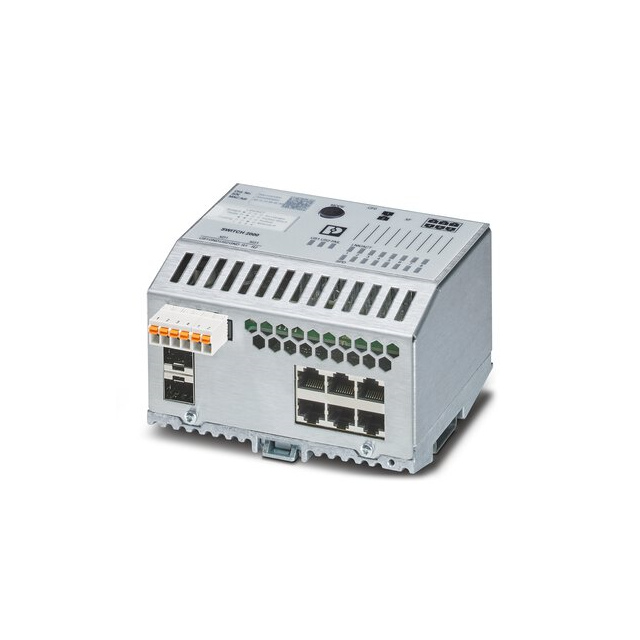

MANAGED SWITCH 2000, 6 RJ45 PORT
1043414
ActivePhoenix Contact
MANAGED SWITCH 2000, 6 RJ45 PORT
Description
General part information
1043414
Network Switch - Managed 8 Ports IP20
Technical Specifications
Parameters and characteristics for this part
| Specification | 1043414 |
|---|---|
| Configuration | Fixed, SFP |
| Connector Type | RJ45, SFP |
| Copper Ports | 6 |
| Copper Type | 10/100 |
| Fiber Ports | 2 |
| Fiber Type | SFP |
| Ingress Protection | IP20 |
| Mounting Type | DIN Rail |
| Number of Ports | 8 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| SFP/XFP Ports (Count) | 2 |
| SFP/XFP Type | SFP |
| Type | Switch - Managed |
| Voltage - Input (Maximum) | 32 V |
| Voltage - Input (Minimum) | 19.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
