SC53-391
ActiveSignal Transformer
FIXED IND 390UH 290MA 3.5OHM SMD
SC53-391
ActiveSignal Transformer
FIXED IND 390UH 290MA 3.5OHM SMD
Description
General part information
SC53-391

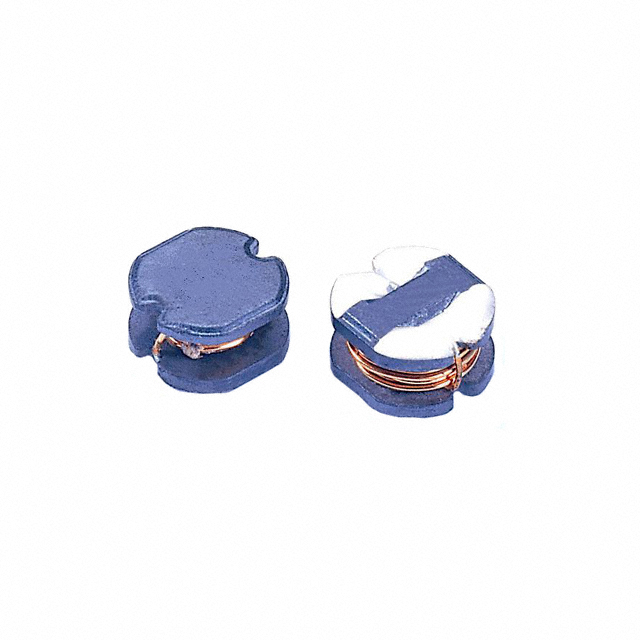

390 µH Unshielded Wirewound Inductor 290 mA 3.5Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SC53-391 |
|---|---|
| Current - Saturation (Isat) | 0.26 mA |
| Current Rating | 0.29 A |
| DC Resistance (DCR) (Max) | 3.5 Ohm |
| Height - Seated (Max) | 0.13 in |
| Inductance | 390 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.24 in |
| Size / Dimension Width | 0.217 in |
| Tolerance | 20 % |
| Type | Wirewound |
