AS4C64M32MD2A-25BINTR

Active

Alliance Memory, Inc.

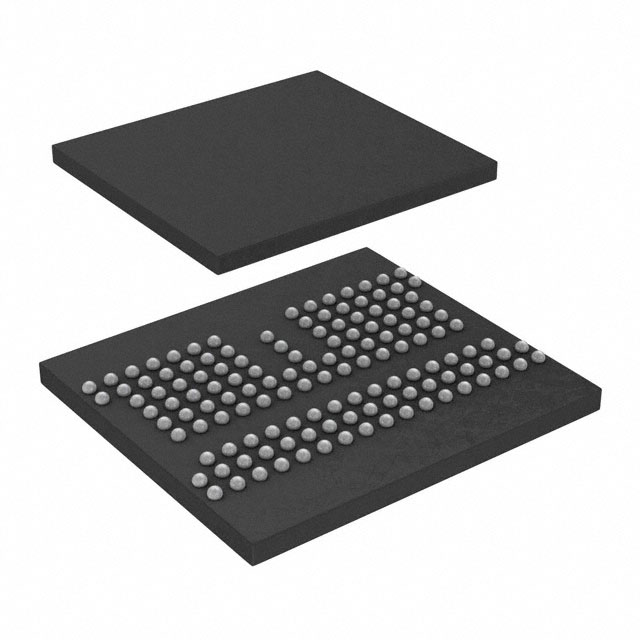

IC DRAM 2GBIT PARALLEL 134FBGA

Deep-Dive with AI

Search across all available documentation for this part.

AS4C64M32MD2A-25BINTR

Active

Alliance Memory, Inc.

IC DRAM 2GBIT PARALLEL 134FBGA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AS4C64M32MD2A-25BINTR	AS4C64 Series

Access Time	5.5 ns	5 - 700 ns
Clock Frequency	400 MHz	1.6 - 800 MHz
Grade	-	Automotive
Memory Format	DRAM	DRAM
Memory Interface	HSUL_12	Parallel, LVTTL, SSTL_2, LVSTL, HSUL_12
Memory Organization	64M x 32	64M x 32
Memory Organization	-	64 M
Memory Size	2 Gbit	1 - 256 Mbit
Memory Type	Volatile	Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	70 - 105 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Package / Case	134-VFBGA	96-VFBGA, 60-TFBGA, 96-TFBGA, 134-VFBGA, 90-VFBGA, 200-WFBGA
Qualification	-	AEC-Q100
Supplier Device Package	134-FBGA (10x11.5)	96-FBGA (8x13), 54-TSOP II, 60-FBGA (8x10), 96-FBGA, 134-FBGA (10x11.5), 90-FBGA (8x13), 60-FBGA (8x13), 200-FBGA, 96-FBGA (7.5x13)
Supplier Device Package	-	14.5
Supplier Device Package	-	10
Technology	SDRAM - Mobile LPDDR2	SDRAM - DDR3, SDRAM, SDRAM - DDR2, SDRAM - Mobile LPDDR2, SDRAM - Mobile LPDDR, SDRAM - DDR3L, SDRAM - Mobile LPDDR4
Voltage - Supply [Max]	1.95 V, 1.3 V	1.17 - 3.6 V
Voltage - Supply [Min]	1.7 V, 1.14 V	1.06 - 3 V
Write Cycle Time - Word, Page	15 ns	15 - 18 ns

AS4C64 Series

IC DRAM 1GBIT PARALLEL 96FBGA

Part	Memory Interface	Memory Organization	Operating Temperature [Max]	Operating Temperature [Min]	Clock Frequency	Access Time	Write Cycle Time - Word, Page	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Memory Type	Grade	Memory Format	Technology	Supplier Device Package	Memory Size	Qualification	Package / Case	Memory Organization	Supplier Device Package [y]	Supplier Device Package [x]
Alliance Memory, Inc. AS4C64M16D3A-12BAN	Parallel	64 M	105 °C	-40 °C	800 MHz	20 ns	15 ns	1.575 V	1.425 V	Surface Mount	Volatile	Automotive	DRAM	SDRAM - DDR3	96-FBGA (8x13)	1 Mbit	AEC-Q100	96-VFBGA
Alliance Memory, Inc. AS4C64M8SD-7TCNTR	LVTTL	64 M	70 °C	0 °C	133 MHz	5.4 ns	15 ns	3.6 V	3 V	Surface Mount	Volatile		DRAM	SDRAM	54-TSOP II	64 MB
Alliance Memory, Inc. AS4C64M8D2-25BCN	Parallel	64 M	70 °C	0 °C	400 MHz	400 ps	15 ns	1.9 V	1.7 V	Surface Mount	Volatile		DRAM	SDRAM - DDR2	60-FBGA (8x10)	64 MB		60-TFBGA
Alliance Memory, Inc. AS4C64M16D3B-12BINTR	Parallel	64 M	95 °C	-40 °C	800 MHz	20 ns	15 ns	1.575 V	1.425 V	Surface Mount	Volatile		DRAM	SDRAM - DDR3	96-FBGA	1 Mbit		96-TFBGA
Alliance Memory, Inc. AS4C64M32MD2-25BCN	Parallel		85 °C	-30 °C	400 MHz		15 ns	1.95 V	1.14 V	Surface Mount	Volatile		DRAM	SDRAM - Mobile LPDDR2	134-FBGA (10x11.5)	2 Gbit		134-VFBGA	64M x 32
Alliance Memory, Inc. AS4C64M32MD1A-5BIN	Parallel		85 °C	-40 °C	200 MHz	5 ns	15 ns	1.95 V	1.7 V	Surface Mount	Volatile		DRAM	SDRAM - Mobile LPDDR	90-FBGA (8x13)	2 Gbit		90-VFBGA	64M x 32
Alliance Memory, Inc. AS4C64M16D3LB-12BCN	Parallel	64 M	95 °C	0 °C	800 MHz	20 ns	15 ns	1.45 V	1.283 V	Surface Mount	Volatile		DRAM	SDRAM - DDR3L	96-FBGA	1 Mbit		96-TFBGA
Alliance Memory, Inc. AS4C64M16D1A-6BINTR	SSTL_2	64 M	85 °C	-40 °C	166 MHz	700 ps	15 ns	2.7 V	2.3 V	Surface Mount	Volatile		DRAM		60-FBGA (8x13)	1 Mbit		60-TFBGA
Alliance Memory, Inc. AS4C64M8SD-7TCN	LVTTL	64 M	70 °C	0 °C	133 MHz	5.4 ns	15 ns	3.6 V	3 V	Surface Mount	Volatile		DRAM	SDRAM	54-TSOP II	64 MB
Alliance Memory, Inc. AS4C64M32MD4-062BAN	LVSTL		105 °C	-40 °C	1.6 GHz		18 ns	1.17 V, 1.95 V	1.06 V, 1.7 V	Surface Mount	Volatile		DRAM	SDRAM - Mobile LPDDR4	200-FBGA	2 Gbit		200-WFBGA	64M x 32	14.5	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 6.87

Description

General part information

AS4C64 Series

SDRAM - Mobile LPDDR2 Memory IC 2Gbit HSUL_12 400 MHz 5.5 ns 134-FBGA (10x11.5)
