CNX722C90005T
ObsoleteVisual Communications Company - VCC
22MM WHITE 5V SOLDER TERMINALS
CNX722C90005T
ObsoleteVisual Communications Company - VCC
22MM WHITE 5V SOLDER TERMINALS
Description
General part information
CNX722C90005T

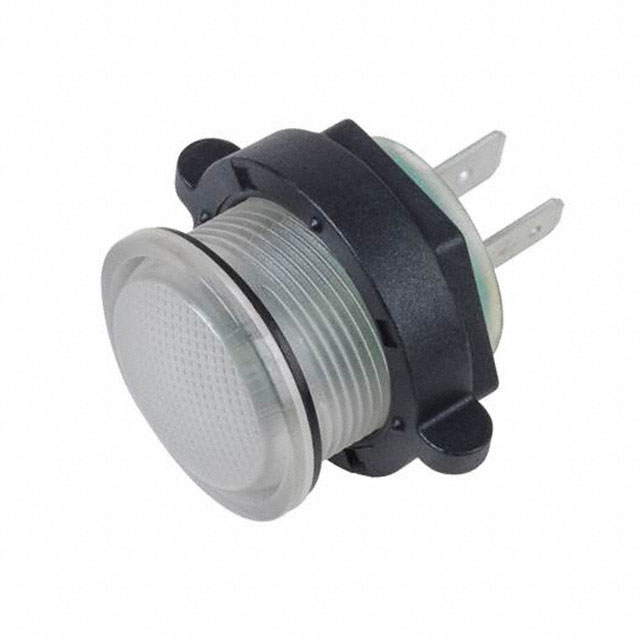

LED Panel Indicator White Diffused 5V 20mA Solder Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | CNX722C90005T |
|---|---|
| Current | 20 mA |
| Ingress Protection | NEMA 6P, IP67 |
| Lamp Color | White |
| Lens Color | White |
| Lens Diameter | 25.6 mm |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 1500 mcd |
| Panel Cutout Dimension | 0.88 " |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Solder Lug |
| Type | LED |
| Voltage | 5 VDC |
