1SD26-3120-00C-300
ActiveCOMPUTER CABLE, SDR 26 POSITION PLUG, SDR 26 POSITION PLUG, 9.8 FT, 3 M, GRAY
Deep-Dive with AI
Search across all available documentation for this part.
1SD26-3120-00C-300
ActiveCOMPUTER CABLE, SDR 26 POSITION PLUG, SDR 26 POSITION PLUG, 9.8 FT, 3 M, GRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1SD26-3120-00C-300 | 1SD26 Series |
|---|---|---|
| Cable Type | Round, Gray | Round, Gray |
| Configuration | Centronics 26 pos Male to Male | Centronics 26 pos Male to Male |
| Length [x] | 9.84 ft | 9.84 - 32.81 ft |
| Length [x] | 3 m | 3 - 10 m |
| Shielding | Shielded | Shielded |
| Style | Bidirectional | Bidirectional |
1SD26 Series
CABLE ASSEMBLY CAMERA 5M 28AWG D-SUBMINIATURE TO D-SUBMINIATURE 26 TO 26 POS F-F BOX
| Part | Configuration | Style | Cable Type | Shielding | Length [x] | Length [x] |
|---|---|---|---|---|---|---|
Centronics 26 pos Male to Male | Bidirectional | Round, Gray | Shielded | |||
Centronics 26 pos Male to Male | Bidirectional | Round, Gray | Shielded | 9.84 ft | 3 m | |
Centronics 26 pos Male to Male | Bidirectional | Round, Gray | Shielded | 32.81 ft | 10 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1SD26 Series

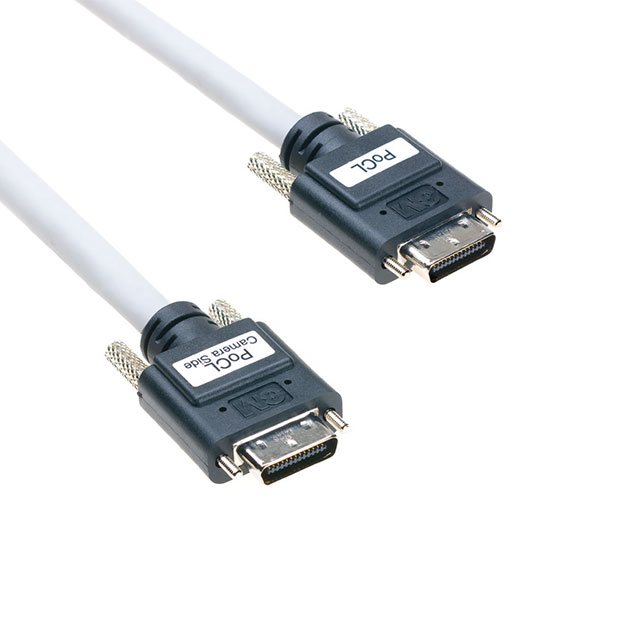

The 1SD26-3120-00C-300 is a shrunk delta ribbon (SDR) Cable Assembly with SDR 26-position plug on either side of the 28AWG stranded gray PVC cable. The over-molded plug shell is made of black PVC. It carries power in addition to signal to enable use in base configuration Power over Camera Link® (PoCL) applications. Connects to Mini-Camera Link style (SDR) I/O ports on both PoCL camera and PoCL frame grabber. The entire cable bundle shielded with foil and braid for additional signal protection, the rugged ribbon type contact for reliable and repeatable connectivity.
