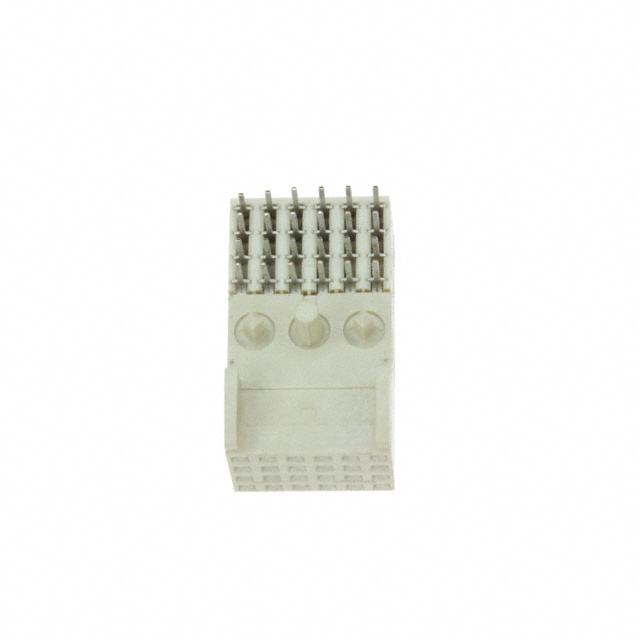

MP2-S024-41M1-C-LR

Active

CONN RCPT FUTUREBUS+ 24P EDGE MT

Search across all available documentation for this part.

Active

CONN RCPT FUTUREBUS+ 24P EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	MP2-S024-41M1-C-LR

Color	Beige
Connector Style	Futurebus+®
Connector Type	Receptacle, Female Sockets
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Current Rating (Amps)	1.5 A
Features	Board Guide, Board Lock, Spacer
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	24
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder

CONN RCPT FUTUREBUS+ 24P EDGE MT

Part	Material Flammability Rating	Features	Color	Contact Finish	Connector Style	Number of Positions	Current Rating (Amps)	Termination	Connector Usage	Mounting Type	Number of Positions Loaded	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish Thickness	Contact Finish Thickness
3M MP2-S024-41M1-C-LR	UL94 V-0	Board Guide, Board Lock, Spacer	Beige	Gold	Futurebus+®	24	1.5 A	Solder	Backplane	Board Edge, Right Angle, Through Hole	All	0.079 in	2 mm	-55 °C	125 °C	Receptacle, Female Sockets	3 Áin	0.076 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Beige Futurebus+®
