9527 060500

Active

Belden Inc.

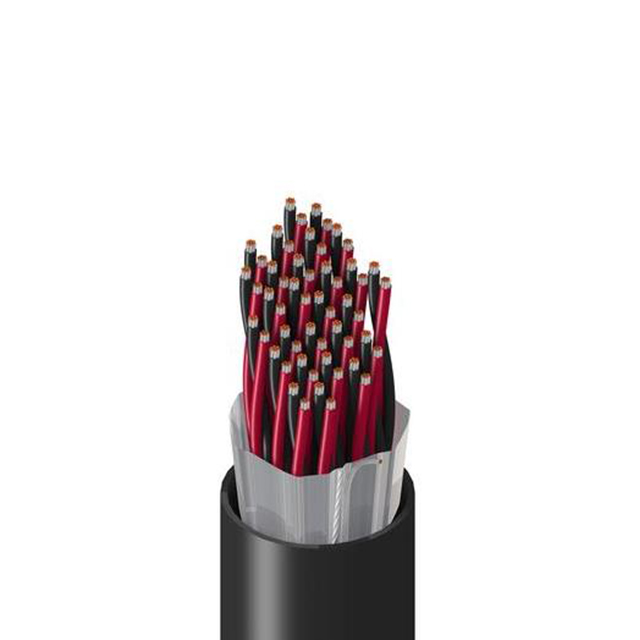

MULTI-PAIR 54COND 22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 54COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9527 060500

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire, Rip Cord, Flame Retardant
Jacket (Insulation) Diameter [diameter]	0.763 in
Jacket (Insulation) Diameter [diameter]	19.38 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors [custom]	54
Number of Conductors [custom]	27
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Material	Wire Gauge	Shield Type	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Features	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Conductor Material	Voltage	Number of Conductors [custom]	Number of Conductors [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Length [x]	Length [x]	Conductor Insulation	Jacket Color	Ratings
Belden Inc. 9527 060500	Poly-Vinyl Chloride (PVC)	22 AWG	Foil	100 %	-30 ░C	105 ░C	Drain Wire Flame Retardant Rip Cord	7	30 AWG	Multi-Pair	0.763 in	19.38 mm	Instrumentation	Copper Tinned	300 V	54	27	1.6 mm	0.063 in	Aluminum	500 '	152.4 m	Poly-Vinyl Chloride (PVC)	Chrome	UL Style 2464

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 19.33

General part information

54 (27 Pair) Conductor Multi-Pair Cable Chrome 22 AWG Foil 500.0' (152.4m)
