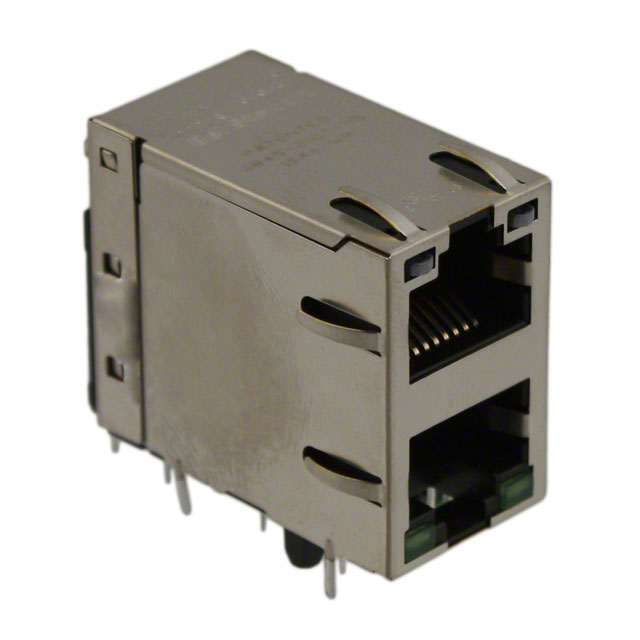

0845-2G1T-H5

Active

Bel Fuse Inc.

CONN JACK 2PORT 100 BASE-T PCB

Search across all available documentation for this part.

Active

Bel Fuse Inc.

CONN JACK 2PORT 100 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

Specification	0845-2G1T-H5

Applications	10/100 Base-T, AutoMDIX
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Features	Board Guide
Height Above Board	1.08 in
Height Above Board	27.43 mm
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Green - Green
Mounting Type	Through Hole
Number of Ports	2
Number of Rows	2
Orientation	90 °
Shield Material	Copper Alloy
Shielding	Shielded, EMI Finger
Tab Direction	Up and Down
Termination	Solder

CONN JACK 2PORT 100 BASE-T PCB

Part	Contact Finish	Termination	Shield Material	Tab Direction	LED Color	Number of Rows	Connector Type	Number of Ports	Shielding	Height Above Board	Height Above Board	Orientation	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Applications	Mounting Type	Features
Bel Fuse Inc. 0845-2G1T-H5	Gold	Solder	Copper Alloy	Up and Down	Green - Green	2	RJ45	2	Shielded, EMI Finger	1.08 in	27.43 mm	90 °	Polybutylene Terephthalate (PBT)	50 µin	1.27 µm	10/100 Base-T, AutoMDIX	Through Hole	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
