031-6233

Active

AMPHENOL RF

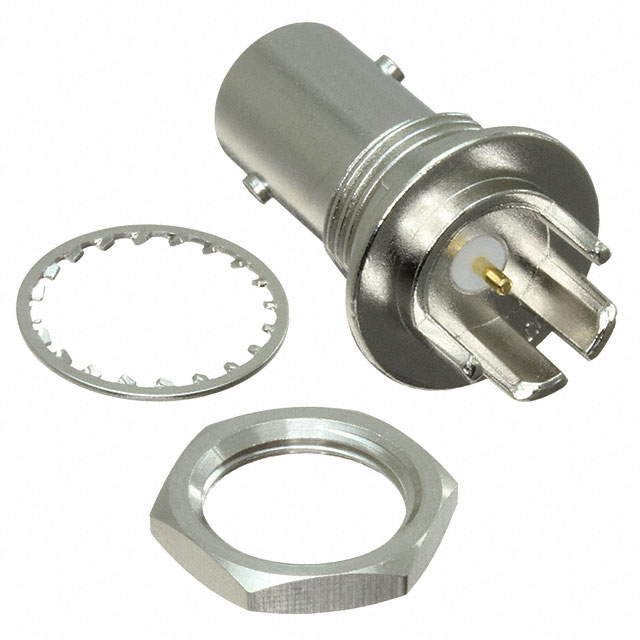

CONN BNC JACK STR 50OHM EDGE MNT

Deep-Dive with AI

Search across all available documentation for this part.

031-6233

Active

AMPHENOL RF

CONN BNC JACK STR 50OHM EDGE MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-6233	031-62 Series

Body Finish	Nickel	Nickel, Tin
Body Material	Zinc Die Cast	Brass, Zinc Die Cast, Zinc Alloy
Cable Group	-	188, 188A, 316, LMR-100, M17/119-RG174, RG-174, Semi Rigid, RG-405, 1.13mm Coaxial Cable
Cable Group	-	0.085 in
Cable Group	-	0.086 in
Center Contact Material	Beryllium Copper	Phosphor Bronze, Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	RP-TNC, BNC, TNC
Connector Type	Female Socket, Jack	Male Pin, Jack, Female Socket
Contact Termination	Solder	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polybutylene Terephthalate (PBT)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	3 GHz	1 - 6000 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher	1 Lockwasher, 1 Contact, 1 Nut, 1 Ferrule, 1 Gasket, 1 Connector, 1 Sleeve, 1 Bushing
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Rear Side Nut, Bulkhead - Front Side Nut
Mounting Type	Panel Mount, End Launch, Board Edge	Panel Mount, End Launch, Board Edge, Through Hole, Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 °C
Shield Termination	Solder	Crimp, Solder
Voltage Rating	500 V	500 V

031-62 Series

CONN RPTNC JACK STR 50 OHM CRIMP

Part	Body Finish	Voltage Rating	Frequency - Max [Max]	Connector Type	Contact Termination	Center Contact Plating	Mating Cycles	Mounting Feature	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Color	Center Contact Material	Shield Termination	Cable Group	Dielectric Material	Connector Style	Body Material	Includes	Number of Ports	Mounting Type	Fastening Type	Insertion Loss	Cable Group [Min]	Cable Group [Max]
AMPHENOL RF 031-6213	Nickel	500 V	3 GHz	Jack, Male Pin	Crimp, Solder	Gold	500	Bulkhead - Rear Side Nut	50 Ohms	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	Silver	Phosphor Bronze	Crimp	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	Polytetrafluoroethylene (PTFE)	RP-TNC	Brass	1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut	1
AMPHENOL RF 031-6233	Nickel	500 V	3 GHz	Female Socket, Jack	Solder	Gold	500	Bulkhead - Front Side Nut	50 Ohms	165 °C	-65 ░C		Silver	Beryllium Copper	Solder		Polytetrafluoroethylene (PTFE)	BNC	Zinc Die Cast	1 Connector, 1 Lockwasher, 1 Nut	1	Board Edge, End Launch, Panel Mount	Bayonet Lock	0.2 dB
AMPHENOL RF 031-6288	Nickel	500 V	6000 MHz	Female Socket, Jack	Solder	Gold	500	Bulkhead - Front Side Nut	50 Ohms	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	Silver	Phosphor Bronze	Solder	RG-405, Semi Rigid	Polytetrafluoroethylene (PTFE)	TNC	Brass	1 Connector, 1 Contact, 1 Lockwasher, 1 Nut	1				0.085 in	0.086 in
AMPHENOL RF 031-6212	Nickel	500 V	3 GHz	Female Socket, Jack	Crimp, Solder	Gold	500	Bulkhead - Rear Side Nut	50 Ohms	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	Silver	Phosphor Bronze	Crimp	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	Polytetrafluoroethylene (PTFE)	TNC	Brass	1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut	1
AMPHENOL RF 031-6219	Nickel	500 V	3 GHz	Jack, Male Pin	Solder	Gold	500	Bulkhead - Rear Side Nut	50 Ohms	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	Silver	Phosphor Bronze	Crimp	1.13mm Coaxial Cable	Polytetrafluoroethylene (PTFE)	RP-TNC	Brass	1 Bushing, 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut, 1 Sleeve	1
AMPHENOL RF 031-6294	Nickel	500 V	11 GHz	Female Socket, Jack	Solder	Gold	500	Bulkhead - Front Side Nut	50 Ohms	155 °C	-40 °C		Silver	Beryllium Copper	Solder		Polybutylene Terephthalate (PBT), Polytetrafluoroethylene (PTFE)	TNC	Zinc Die Cast		1	Panel Mount, Right Angle, Through Hole
AMPHENOL RF 031-6240-3	Tin	500 V	1 GHz	Jack, Male Pin	Solder	Gold		Bulkhead - Front Side Nut	50 Ohms	165 °C	-65 ░C		Silver	Brass	Solder		Polybutylene Terephthalate (PBT), Polytetrafluoroethylene (PTFE)	RP-TNC	Zinc Alloy		1	Panel Mount, Right Angle, Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.88
		10	$ 7.99
		25	$ 7.52
		50	$ 7.33
		100	$ 7.14
		300	$ 6.37
		500	$ 5.98
		1000	$ 5.29

Description

General part information

031-62 Series

BNC Connector Jack, Female Socket 50 Ohms Board Edge, End Launch; Panel Mount Solder
