787613-1

Active

TE Connectivity AMP Connectors

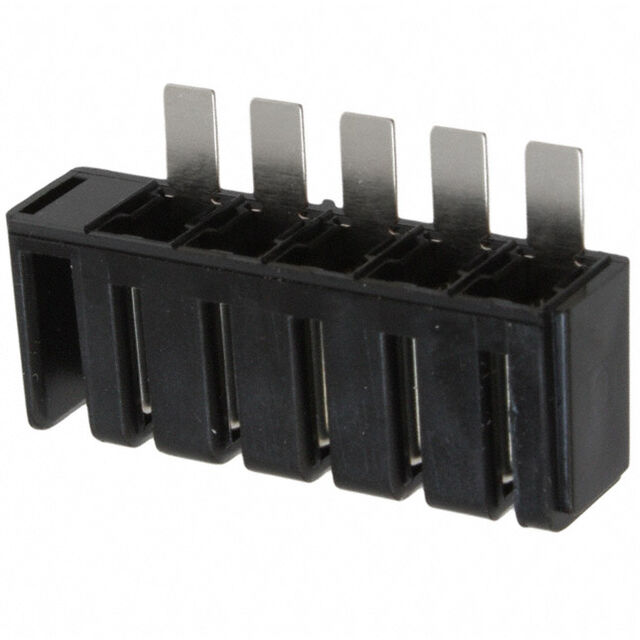

CONN RCPT 5POS 5.00MM EDGE SMD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT 5POS 5.00MM EDGE SMD

Technical Specifications

Parameters and characteristics for this part

Specification	787613-1

Color	Black
Connector Style	7.2V Battery
Connector Type	Receptacle, Female Blade Sockets
Contact Finish	Nickel
Contact Material	Copper Alloy
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Material - Insulation	Polycarbonate
Material - Insulation	PC
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Termination	Solder
Voltage Rating	7.2 V

CONN RCPT 5POS 5.00MM EDGE SMD

Part	Contact Finish	Number of Rows	Mounting Type	Voltage Rating	Contact Material	Color	Termination	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Connector Type	Pitch [x]	Pitch [x]	Material - Insulation	Material - Insulation	Connector Style
TE Connectivity AMP Connectors 787613-1	Nickel	1	Board Edge, Cutout, Surface Mount	7.2 V	Copper Alloy	Black	Solder	7 A	70 °C	-30 ░C	Push-Pull	Receptacle, Female Blade Sockets	5 mm	0.197 in	Polycarbonate	PC	7.2V Battery

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Receptacle, Female Blade Sockets Connector Solder 0.197" (5.00mm) Board Edge, Cutout; Surface Mount
