Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EVAL-FDA903S-SA | FDA903 Series |
|---|---|---|
| - | - | |
| Board Type | Fully Populated | Fully Populated |
| Grade | - | Automotive |
| Max Output Power x Channels @ Load | - | 45 W |
| Max Output Power x Channels @ Load [custom] | 2 | 2 |
| Max Output Power x Channels @ Load [custom] | 10 W | 10 W |
| Max Output Power x Channels @ Load [custom] | 4 Ohm | 4 Ohm |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 °C |
| Output Type | - | 2-Channel (Stereo), 1-Channel (Mono) |
| Package / Case | - | 0.295 in |
| Package / Case | - | 7.5 mm |
| Package / Case | - | 36-PowerFSOP |
| Qualification | - | AEC-Q100 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | PowerSSO-36 EPU |
| Type | - | Class D |
| Utilized IC / Part | FDA903S | FDA903S, FDA903D, FDA903U |
| Voltage - Supply [Max] | 18 V | 18 V |
| Voltage - Supply [Min] | 3.3 V | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 191.11 | |
FDA903 Series
EVAL-FDA903U evaluation board for FDA903U
| Part | Board Type | Max Output Power x Channels @ Load [custom] | Max Output Power x Channels @ Load [custom] | Max Output Power x Channels @ Load [custom] | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplied Contents | Utilized IC / Part | Output Type | Grade | Package / Case [x] | Package / Case [y] | Package / Case | Mounting Type | Type | Max Output Power x Channels @ Load | Supplier Device Package | Qualification | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics AEKD-STEREOAVAS | ||||||||||||||||||||
STMicroelectronics AEKD-STEREOAVAS | ||||||||||||||||||||
STMicroelectronics EVAL-FDA903S-SA | Fully Populated | 2 | 10 W | 4 Ohm | 18 V | 3.3 V | Board(s) | FDA903S | ||||||||||||
STMicroelectronics AEKD-STEREOAVAS | Fully Populated | Board(s) | FDA903D | 2-Channel (Stereo) | ||||||||||||||||
STMicroelectronics FDA903U-KBX | ||||||||||||||||||||
STMicroelectronics EVAL-FDA903U-SA | Fully Populated | 18 V | 3.3 V | Board(s) | FDA903U | 1-Channel (Mono) | ||||||||||||||
STMicroelectronics EVAL-FDA903S-SA | ||||||||||||||||||||
STMicroelectronics EVAL-FDA903S-SA | ||||||||||||||||||||
STMicroelectronics EVAL-FDA903U-SA | ||||||||||||||||||||
STMicroelectronics FDA903U-KBX | 18 V | 3.3 V | 1-Channel (Mono) | Automotive | 0.295 in | 7.5 mm | 36-PowerFSOP | Surface Mount | Class D | 45 W | PowerSSO-36 EPU | AEC-Q100 | -40 °C | 125 °C |
Description
General part information
FDA903 Series

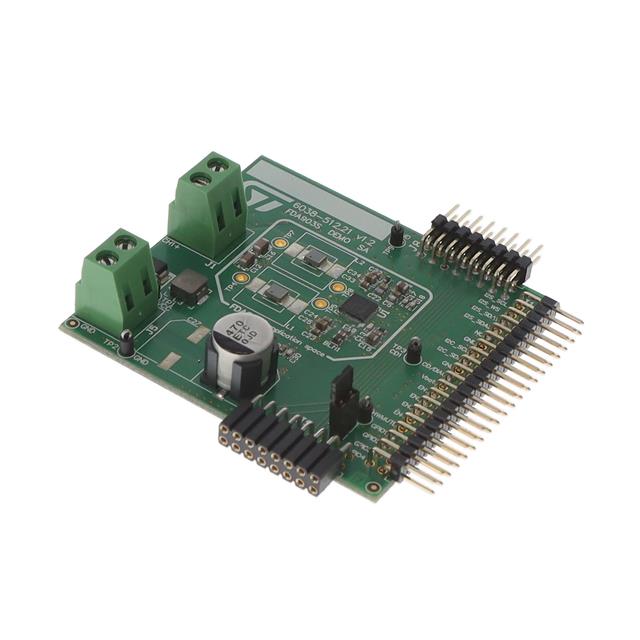

EVAL-FDA903U is an evaluation board for automotive digital class-D power amplifier FDA803U and FDA903U in PowerSSO-36 slug-up package.
