Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TSB952IYQ2T | TSB952 Series |
|---|---|---|
| - | - | |
| Amplifier Type | Standard | Standard |
| Current - Input Bias | 6 pA | 6 pA |
| Current - Output / Channel | 46 mA | 46 mA |
| Current - Supply | 2.6 mA | 2.6 mA |
| Gain Bandwidth Product | 52 MHz | 52 MHz |
| Grade | Automotive | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Single Ended, Rail-to-Rail | Single Ended, Rail-to-Rail |

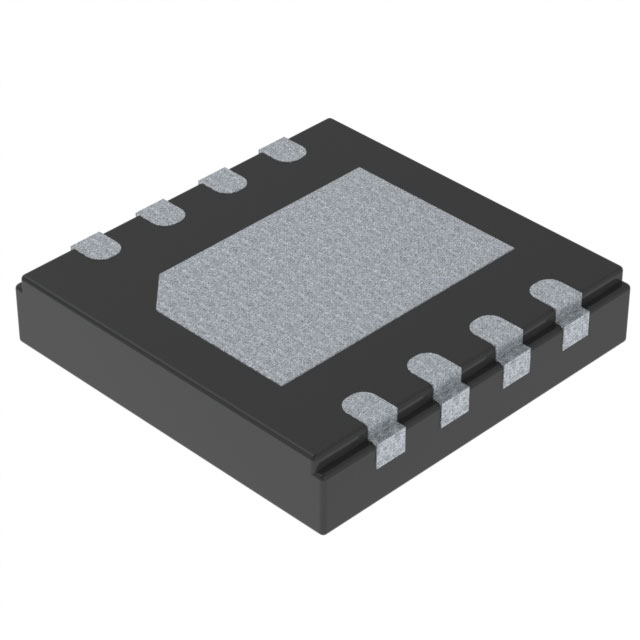

| Package / Case | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad |
| Qualification | AEC-Q100 | AEC-Q100 |
| Slew Rate | 30 V/µs | 30 V/µs |
| Supplier Device Package | 8-DFN (3x3) | 8-DFN (3x3) |
| Voltage - Input Offset | 3 mV | 3 mV |
| Voltage - Supply Span (Max) [Max] | 36 V | 36 V |
| Voltage - Supply Span (Min) [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.90 | |
| 10 | $ 2.56 | |||
| 25 | $ 2.22 | |||
| 100 | $ 1.83 | |||
| 250 | $ 1.64 | |||
| 500 | $ 1.52 | |||
| 1000 | $ 1.42 | |||
| Digi-Reel® | 1 | $ 3.90 | ||
| 10 | $ 2.56 | |||
| 25 | $ 2.22 | |||
| 100 | $ 1.83 | |||
| 250 | $ 1.64 | |||
| 500 | $ 1.52 | |||
| 1000 | $ 1.42 | |||
| Tape & Reel (TR) | 3000 | $ 1.30 | ||
| 6000 | $ 1.25 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 2.48 | |
| 10 | $ 1.85 | |||
| 25 | $ 1.69 | |||
| 50 | $ 1.60 | |||
| 100 | $ 1.51 | |||
| 250 | $ 1.43 | |||
| 500 | $ 1.38 | |||
| 1000 | $ 1.34 | |||
TSB952 Series
High bandwidth (52 MHz), rail-to-rail output, 36 V op amp
| Part | Current - Input Bias | Operating Temperature [Max] | Operating Temperature [Min] | Gain Bandwidth Product | Current - Output / Channel | Voltage - Input Offset | Qualification | Grade | Slew Rate | Current - Supply | Number of Circuits | Output Type | Voltage - Supply Span (Max) [Max] | Voltage - Supply Span (Min) [Min] | Mounting Type | Package / Case | Supplier Device Package | Amplifier Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TSB952IDT | ||||||||||||||||||
STMicroelectronics TSB952IYQ2T | 6 pA | 125 °C | -40 °C | 52 MHz | 46 mA | 3 mV | AEC-Q100 | Automotive | 30 V/µs | 2.6 mA | 2 | Rail-to-Rail, Single Ended | 36 V | 4.5 V | Surface Mount | 8-WDFN Exposed Pad | 8-DFN (3x3) | Standard |
STMicroelectronics TSB952IYQ2T | ||||||||||||||||||
STMicroelectronics TSB952IYQ2T | ||||||||||||||||||
STMicroelectronics TSB952IQ2T | ||||||||||||||||||
STMicroelectronics TSB952IQ2T | ||||||||||||||||||
STMicroelectronics TSB952IDT | ||||||||||||||||||
STMicroelectronics TSB952IYDT | ||||||||||||||||||
STMicroelectronics TSB952IYDT |
Description
General part information
TSB952 Series
The TSB951 and TSB952 are high-speed operational amplifier featuring an extended supply voltage operating range and rail-to-rail output. They also have an excellent speed/current consumption ratio because they are 52 MHz gain bandwidth products, consuming less than 3.3 mA per channel at 36 V supply voltage.
The TSB951 and TSB952 operate over a wide temperature range from -40 °C to +125 °C, making these devices ideal for industrial and automotive applications with the associated qualification.
Thanks to their small package size, the TSB951 and TSB952 can be used in applications where space on the board is limited. It can thus reduce the overall cost of the PCB.
