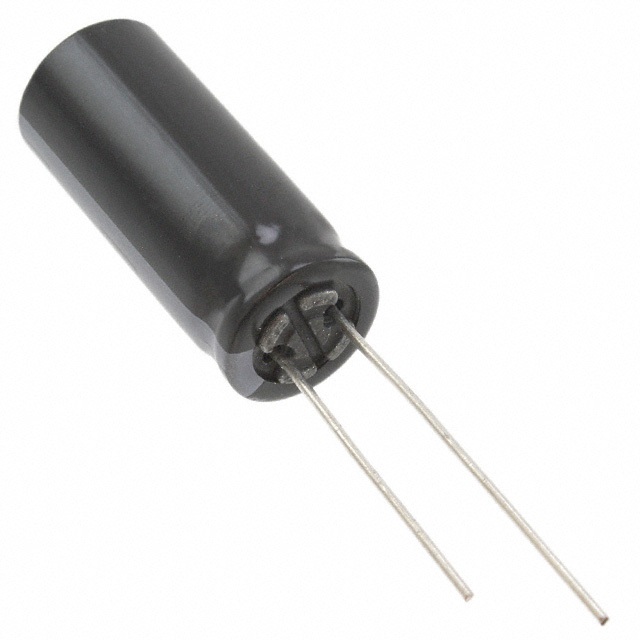

Specification	EEU-FR1E222L

Applications	General Purpose
Capacitance	2200 ĄF
Height - Seated (Max)	1.26 in
Impedance	13 mOhm
Lead Spacing	0.197 in
Lifetime	10000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Radial
Polarization	Polar
Ripple Current	3.63 A, 2.904 A
Size / Dimension Diameter	0.492 in
Tolerance	20 %
Voltage - Rated	25 VAC

EEU-FR Series

...

Part	Impedance	Polarization	Capacitance	Lead Spacing	Ripple Current	Size / Dimension Diameter	Applications	Package / Case	Lifetime	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Rated	Height - Seated (Max)	Tolerance	Mounting Type
Panasonic Electronic Components EEU-FR1E470	300 mOhm	Polar	47 µF	0.079 in	196 mA 280 mA	0.197 in	General Purpose	Can Radial	5000 Hrs	-40 °C	105 °C	25 VAC	0.492 in	20 %	Through Hole
Panasonic Electronic Components EEU-FR1E222S	17 mOhms	Polar	2200 ĄF	0.295 in	2.64 A 3.3 A	0.63 in	General Purpose	Can Radial	10000 Hrs	-40 °C	105 °C	25 VAC	0.866 in	20 %	Through Hole
Panasonic Electronic Components EEU-FR1E101B	130 mOhms	Polar	100 µF	0.197 in	318.5 mA 455 mA	0.248 in	General Purpose	Can Radial	5000 Hrs	-40 °C	105 °C	25 VAC	12.7 mm	20 %	Through Hole
Panasonic Electronic Components EEU-FR1C152	20 mOhm	Polar	1500 µF	0.197 in	1.744 A 2.18 A	0.394 in	General Purpose	Can Radial	10000 Hrs	-40 °C	105 °C	16 V	0.866 in	20 %	Through Hole
Panasonic Electronic Components EEU-FR1A102B	28 mOhms	Polar	1000 µF	0.197 in	1.3425 A 1.79 A	0.394 in	General Purpose	Can Radial	8000 Hrs	-40 °C	105 °C	10 V	0.689 in	20 %	Through Hole
Panasonic Electronic Components EEU-FR1J221L	33 mOhm	Polar	220 µF	0.197 in	1.05 A 1.5 A	0.394 in	General Purpose	Can Radial	10000 Hrs	-40 °C	105 °C	63 V	1.063 in	20 %	Through Hole
Panasonic Electronic Components EEU-FR1A821	43 mOhm	Polar	820 µF	0.197 in	1.29 A 967.5 mA	0.394 in	General Purpose	Can Radial	6000 Hrs	-40 °C	105 °C	10 V	0.551 in	20 %	Through Hole
Panasonic Electronic Components EEU-FR1A102	28 mOhms	Polar	1000 µF	0.197 in	1.3425 A 1.79 A	0.394 in	General Purpose	Can Radial	8000 Hrs	-40 °C	105 °C	10 V	0.689 in	20 %	Through Hole
Panasonic Electronic Components EEU-FR1V681LB	18 mOhm	Polar	680 µF	0.197 in	1.853 A 2.47 A	0.394 in	General Purpose	Can Radial	10000 Hrs	-40 °C	105 °C	35 V	1.063 in	20 %	Through Hole
Panasonic Electronic Components EEU-FR1E122L	18 mOhm	Polar	1200 µF	0.197 in	1.976 A 2.47 A	0.394 in	General Purpose	Can Radial	10000 Hrs	-40 °C	105 °C	25 VAC	1.063 in	20 %	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

EEU-FR1E222L | Datasheet
