Description

General part information

P70-2410045R

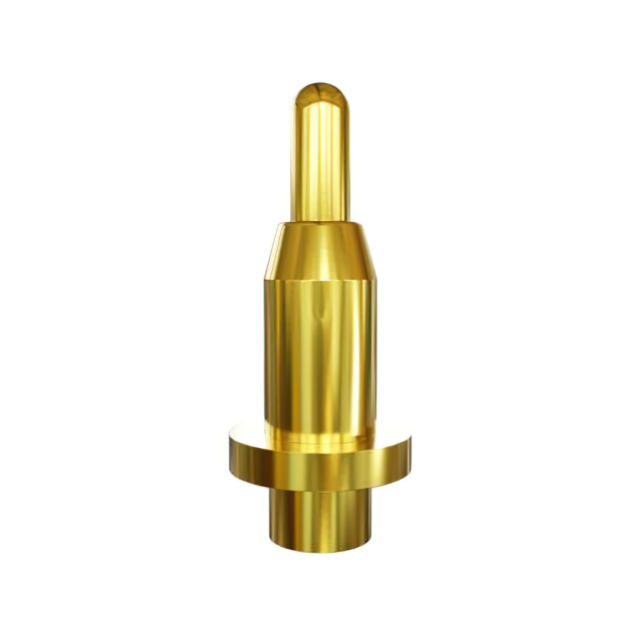

P70-2410045R is a SMT spring loaded pogo pin with peg or PC tail mounting. Mates with any contact surface, or surface mount contact pads S70 series.

Technical Specifications

Parameters and characteristics for this part

SpecificationP70-2410045R
Contact FinishGold
Contact MaterialCopper Alloy
Contact TypeSleeve, Plunger
Current Rating12 A
Mating Cycles10000 cycles
Minimum Working Height0.228 in
Mounting TypeThrough Hole
Operating Force - Mid Compression120.34 gf
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Pad Layout Diameter0.161 in
Pad Layout ShapeCircular
Plunger Diameter0.05 in
Recommended Working Height0.273 in
