Description
General part information

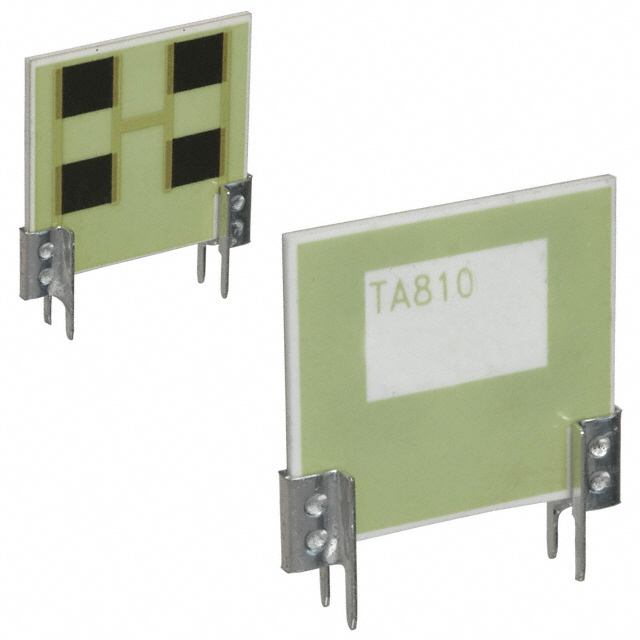

TA810PW150RJ
150 Ohms ±5% 10W Through Hole Resistor Radial Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | TA810PW150RJ |
|---|---|
| Composition | Thick Film |
| Height - Seated (Max) | 1.02 in |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 180 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Package Name | Powerchip® |
| Power (Watts) | 10 W |
| Resistance | 150 Ohm |
| Size / Dimension Length | 1.085 in |
| Size / Dimension Width | 0.24 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 5 % |
