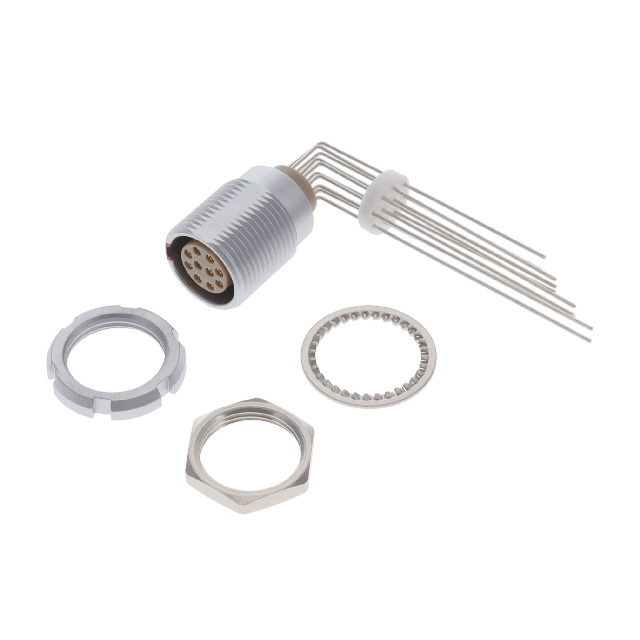

Specification	ECG.2B.310.CLV

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 µin
Contact Material	Bronze
Current Rating	6 A
Fastening Type	Push-Pull
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyetheretherketone, PEEK
Material Flammability Rating	UL94 V-0
Mounting Feature	Front and Rear Side Nut
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	10
Operating Temperature (Max)	250 °C
Operating Temperature (Min)	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	310
Shell Size - Insert	310
Shielding	Shielded
Termination	Solder

ECG.2B Series

Part	Current Rating	Material Flammability Rating	Ingress Protection Description	Ingress Protection IP Rating	Operating Temperature (Max)	Operating Temperature (Min)	Shell Size - Insert	Shell Size - Insert	Fastening Type	Contact Finish Thickness - Mating	Connector Type	Insert Material	Shielding	Contact Finish - Mating	Primary Material	Shell Material	Shell Finish	Termination	Mounting Type	Mounting Feature	Color	Orientation	Number of Positions	Contact Material	Position Types	Number of Positions (Standard)	Number of Positions (Special)	Number of Positions (Total)
LEMO ECG.2B.318.CLN	5.5 A	UL94 V-0	Dust Protected	IP50	250 °C	-55 °C	318	318	Push-Pull	59 µin	Female Sockets Receptacle	PEEK Polyetheretherketone	Shielded	Gold	Metal	Brass	Chrome	Solder	Panel Mount Through Hole	Front and Rear Side Nut	Silver	G	18	Bronze
LEMO ECG.2B.318.CLV	5.5 A	UL94 V-0	Dust Protected	IP50	250 °C	-55 °C	318	318	Push-Pull	59 µin	Female Sockets Receptacle	PEEK Polyetheretherketone	Shielded	Gold	Metal	Brass	Chrome	Solder	Panel Mount Right Angle Through Hole	Front and Rear Side Nut	Silver	G	18	Bronze
LEMO ECG.2B.303.CLN	17 A	UL94 V-0	Dust Protected	IP50	250 °C	-55 °C	303	303	Push-Pull	59 µin	Female Sockets Receptacle	PEEK Polyetheretherketone	Shielded	Gold	Metal	Brass	Chrome	Solder	Panel Mount Through Hole	Front and Rear Side Nut	Silver	G	3	Bronze
LEMO ECG.2B.P13.CLL	6 A	UL94 V-0	Dust Protected	IP50	250 °C	-55 °C		P13	Push-Pull		Female Sockets Receptacle	PEEK Polyetheretherketone	Shielded	Gold	Metal	Brass	Chrome	Solder Cup	Panel Mount	Front and Rear Side Nut	Silver	G			Fluidic	6	1	7
LEMO ECG.2B.305.CLL	14 A	UL94 V-0	Dust Protected	IP50	250 °C	-55 °C	305	305	Push-Pull	59 µin	Female Sockets Receptacle	PEEK Polyetheretherketone	Shielded	Gold	Metal	Brass	Chrome	Solder Cup	Panel Mount	Front and Rear Side Nut	Silver	G	5	Bronze
LEMO ECG.2B.319.CYM	5 A	UL94 V-0	Dust Protected	IP50	250 °C	-55 °C	319	319	Push-Pull	59 µin	Female Sockets Receptacle	PEEK Polyetheretherketone	Shielded	Gold	Metal	Brass	Chrome	Crimp	Panel Mount	Front and Rear Side Nut	Silver	G	19	Bronze
LEMO ECG.2B.303.CLV	12 A	UL94 V-0	Dust Protected	IP50	250 °C	-55 °C	303	303	Push-Pull	59 µin	Female Sockets Receptacle	PEEK Polyetheretherketone	Shielded	Gold	Metal	Brass	Chrome	Solder	Panel Mount Right Angle Through Hole	Front and Rear Side Nut	Silver	G	3	Bronze
LEMO ECG.2B.308.CLN	10 A	UL94 V-0	Dust Protected	IP50	250 °C	-55 °C	308	308	Push-Pull	59 µin	Female Sockets Receptacle	PEEK Polyetheretherketone	Shielded	Gold	Metal	Brass	Chrome	Solder	Panel Mount Through Hole	Front and Rear Side Nut	Silver	G	8	Bronze
LEMO ECG.2B.806.CLL3	7 A	UL94 V-0	Dust Protected	IP50	250 °C	-55 °C		806	Push-Pull		Female Sockets Receptacle	PEEK Polyetheretherketone	Shielded	Gold	Metal	Brass	Chrome	Solder Cup	Panel Mount	Front and Rear Side Nut	Silver	G	7		Coax
LEMO ECG.2B.015.CLL		UL94 V-0	Dust Protected	IP50	250 °C	-55 °C	15	15	Push-Pull		Female Sockets Receptacle	PEEK Polyetheretherketone	Shielded	Gold	Metal	Brass	Chrome	Solder Cup	Panel Mount	Front and Rear Side Nut	Silver	G	11

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
