RG214-LSZH-NMRA-4310M(QTY:55ft)
ActiveMcGill Microwave Systems

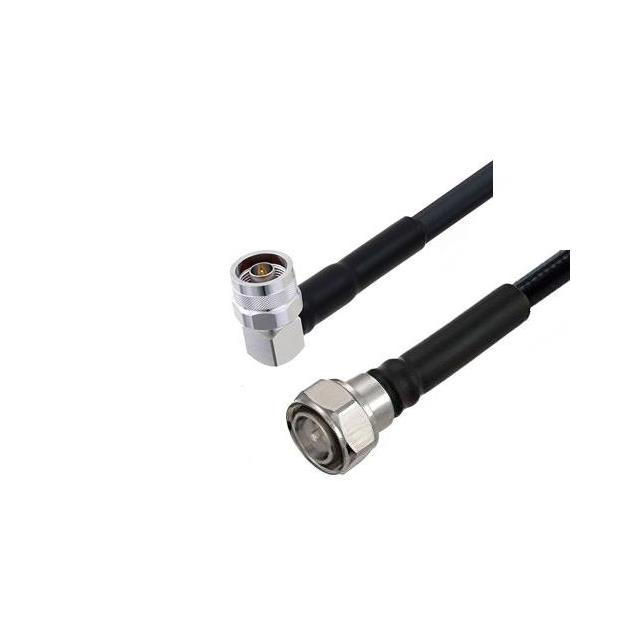

COAX CBL N-TYPE TO 4.3/10 55'
RG214-LSZH-NMRA-4310M(QTY:55ft)
ActiveMcGill Microwave Systems
COAX CBL N-TYPE TO 4.3/10 55'
Description
General part information
RG214-LSZH-NMRA-4310M(QTY:55ft)
Cable Assembly Coaxial N-Type to 4.3/10 RG-214 660.0" (16.8m) 55.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG214-LSZH-NMRA-4310M(QTY:55ft) |
|---|---|
| 1st Connector | N-Type Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line), Right Angle |
| 1st Contact Gender | Male |
| 2nd Connector | 4.3/10 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 214 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max | 1.1 GHz, 3 GHz |
| Length | 55 ft |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type to 4.3/10 |
