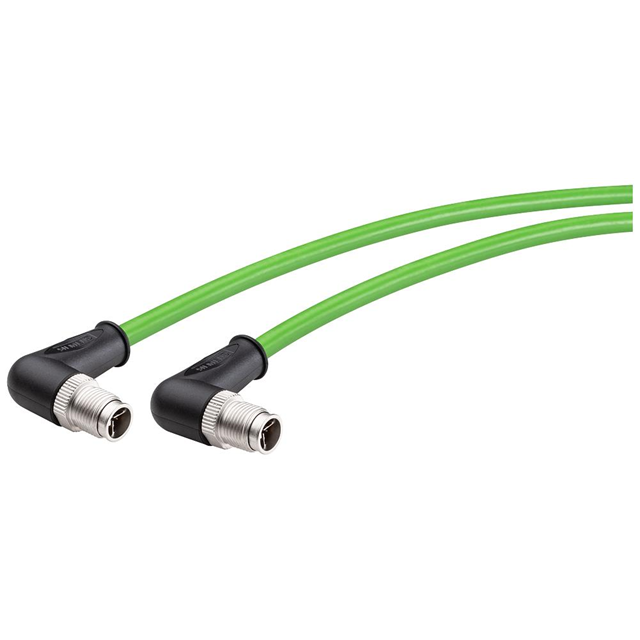

6XV18785GH10
ActiveSiemens
CBL CIRC 8POS MALE TO MALE 3.28'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6XV18785GH10
ActiveSiemens
CBL CIRC 8POS MALE TO MALE 3.28'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6XV18785GH10 | 6XV18785 Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 8 positions | 8 positions |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Orientation | X | X |
| 1st Connector Shell Size - Insert | M12 | M12 |
| 1st Connector Type | Receptacle, Right Angle | Receptacle, Right Angle, Receptacle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 8 | 8 |
| 2nd Connector Number of Positions Loaded | All | All |
| 2nd Connector Orientation | X | X |
| 2nd Connector Shell Size - Insert | M12 | M12 |
| 2nd Connector Type | Receptacle, Right Angle | Receptacle, Right Angle, Receptacle |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyurethane (PUR) | Polyurethane (PUR) |
| Cable Type | Round | Round Cable, Round |
| Color | Green | Green |
| Connector Type | - | Plug to Plug, Circular 08 pos Male to RJ45, 8p8c, Circular 08 pos Male, Right Angle to RJ45, 8p8c |
| Length | - | 1.5 - 30 m |
| Length | - | 4.92 - 98.43 ft |
| Length [x] | 1 m | 1 - 500 m |
| Length [x] | 3.28 ft | 1.64 - 82.02 ft |
| Mounting Type | - | Free Hanging (In-Line) |
| Number of Positions/Contacts | - | 8p8c (RJ45, Ethernet) |
| Shielding | Shielded | Shielded |
| Style | - | Cat5e |
6XV18785 Series
IE CONNECTING CABLE RJ45. 4X2. 2
| Part | Style | Color | Mounting Type | Cable Type | Shielding | Number of Positions/Contacts | Connector Type | Length | Length | 2nd Connector Number of Positions | Length [x] | Length [x] | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 1st Connector Number of Positions | Assembly Configuration | 1st Connector Number of Positions Loaded | 2nd Connector Type | 1st Connector Shell Size - Insert | 1st Connector Type | Cable Material | 1st Connector Mounting Type | 1st Connector Orientation | 2nd Connector Orientation | 2nd Connector Mounting Type | 1st Connector Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Siemens 6XV18785BN20 | Cat5e | Green | Free Hanging (In-Line) | Round Cable | Shielded | 8p8c (RJ45, Ethernet) | Plug to Plug | 20 m | 65.62 ft | |||||||||||||||||
Siemens 6XV18785GH10 | Green | Round | Shielded | 8 | 1 m | 3.28 ft | All | M12 | 8 positions | Standard | All | Receptacle, Right Angle | M12 | Receptacle, Right Angle | Polyurethane (PUR) | Free Hanging (In-Line) | X | X | Free Hanging (In-Line) | Male Pins | ||||||
Siemens 6XV18785HH20 | Green | Round | Shielded | 8 | 2 m | 6.56 ft | All | M12 | 8 positions | Standard | All | Receptacle | M12 | Receptacle | Polyurethane (PUR) | Free Hanging (In-Line) | X | X | Free Hanging (In-Line) | Male Pins | ||||||
Siemens 6XV18785BN30 | Cat5e | Green | Free Hanging (In-Line) | Round Cable | Shielded | 8p8c (RJ45, Ethernet) | Plug to Plug | 30 m | 98.43 ft | |||||||||||||||||
Siemens 6XV18785HH10 | Green | Round | Shielded | 8 | 1 m | 3.28 ft | All | M12 | 8 positions | Standard | All | Receptacle | M12 | Receptacle | Polyurethane (PUR) | Free Hanging (In-Line) | X | X | Free Hanging (In-Line) | Male Pins | ||||||
Siemens 6XV18785HN15 | Green | Round | Shielded | 8 | 15 m | 49.2 ft | All | M12 | 8 positions | Standard | All | Receptacle | M12 | Receptacle | Polyurethane (PUR) | Free Hanging (In-Line) | X | X | Free Hanging (In-Line) | Male Pins | ||||||
Siemens 6XV18785TN10 | Green | Round | Shielded | Circular 08 pos Male to RJ45, 8p8c | 10 m | 32.81 ft | ||||||||||||||||||||
Siemens 6XV18785TH10 | Green | Round | Shielded | Circular 08 pos Male to RJ45, 8p8c | 1 m | 3.28 ft | ||||||||||||||||||||
Siemens 6XV18785BN25 | Cat5e | Green | Free Hanging (In-Line) | Round Cable | Shielded | 8p8c (RJ45, Ethernet) | Plug to Plug | 25 m | 82.02 ft | |||||||||||||||||
Siemens 6XV18785SH50 | Green | Round | Shielded | Circular 08 pos Male, Right Angle to RJ45, 8p8c |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 107.14 | |
Description
General part information
6XV18785 Series
Cable Assembly 3.28' (1.00m)
