SC5843
ActiveFairview Microwave
CONN JACK CLAMP/SOLDER 2.92MM
SC5843
ActiveFairview Microwave
CONN JACK CLAMP/SOLDER 2.92MM
Description
General part information
SC5843

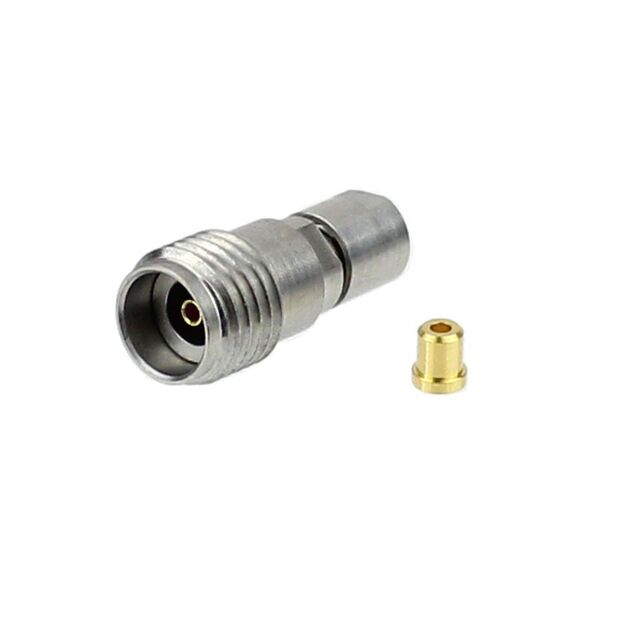

2.92mm Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SC5843 |
|---|---|
| Body Material | Stainless Steel |
| Cable Group | Semi Rigid |
| Cable Group Size | 0.047 " |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Plug Diameter | 2.92 mm |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polyetherimide (PEI) |
| Fastening Type | Threaded |
| Frequency - Max | 40 Gbps |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Clamp |
