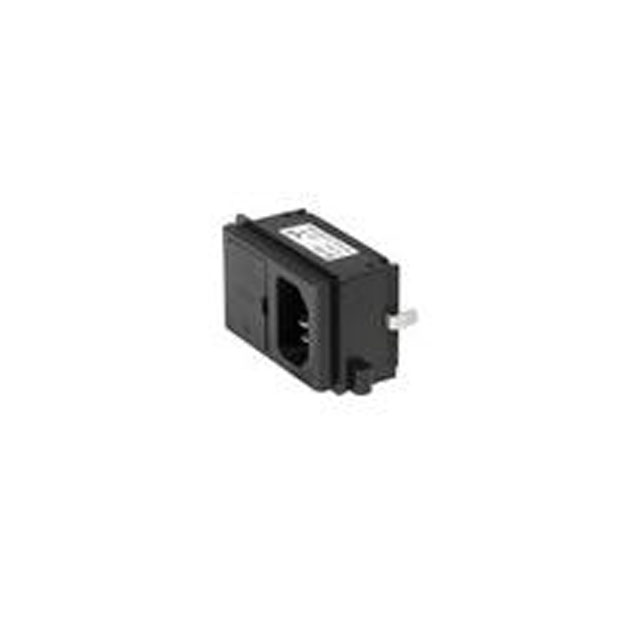

KP01.1312.01

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KP01.1312.01	KP01.1312 Series

Accomodates a Fuse	True	True
Approval Agency	VDE, CCC, cURus	VDE, CCC, cURus
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Features	Terminating Cover	Terminating Cover
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder	Fuse Holder
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount, Snap-In	Through Hole, Right Angle, Panel Mount, Snap-In
Panel Cutout Dimensions	Variable Size	Variable Size
Panel Thickness	2 mm	2 mm
Panel Thickness	0.079 in	0.079 in
Termination	Solder	Solder
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Current Rating - Appliance Inlet	Mounting Type	Termination	Fuse Holder, Drawer	Approval Agency	Material Flammability Rating	Features	Panel Thickness	Panel Thickness	Voltage Rating - Appliance Inlet	Ingress Protection	Connector Type	Connector Style	Panel Cutout Dimensions	Filter Type	Accomodates a Fuse
SCHURTER Inc. KP01.1312.01	10 A	Panel Mount, Snap-In, Through Hole, Right Angle	Solder	Fuse Holder	CCC, cURus, VDE	UL94 V-0	Terminating Cover	2 mm	0.079 in	250 VAC	IP40	Receptacle, Male Blades - Module	IEC 320-C14	Variable Size	Unfiltered - Commercial
SCHURTER Inc. KP01.1312.0190	10 A	Panel Mount, Snap-In, Through Hole, Right Angle	Solder	Fuse Holder	CCC, cURus, VDE	UL94 V-0		2 mm	0.079 in	250 VAC	IP40	Receptacle, Male Blades - Module	IEC 320-C14	Variable Size	Unfiltered - Commercial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In; Through Hole, Right Angle
