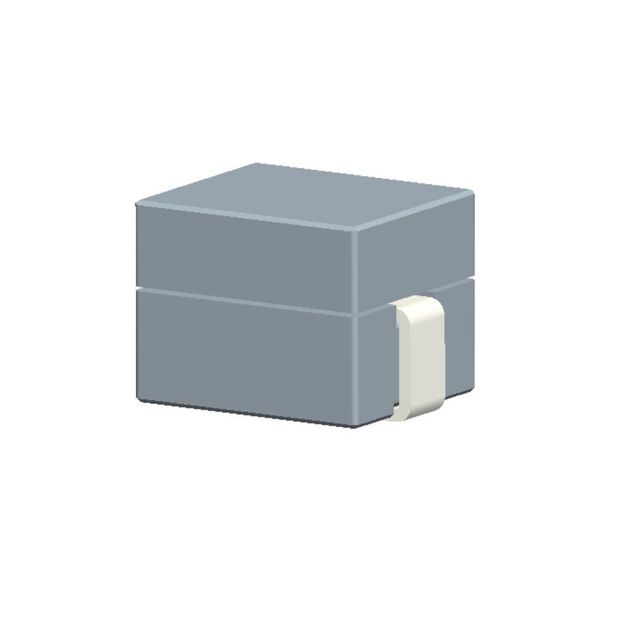

HCB1380-501

Active

Delta Electronics/Components

FIXED IND 500NH 50A 0.26MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HCB1380-501

Active

Delta Electronics/Components

FIXED IND 500NH 50A 0.26MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HCB1380-501	HCB1380 Series

Current - Saturation (Isat)	28 A	28 - 80 A
Current Rating (Amps)	50 A	35 - 68 A
DC Resistance (DCR)	0.26 mOhm	0.165 - 0.53 mOhm
Height - Seated (Max) [Max] [z]	8 mm	8 - 8.2 mm
Height - Seated (Max) [Max] [z]	0.315 in	0.315 - 0.323 in
Inductance	500 nH	210 - 500 nH
Inductance Frequency - Test	100 kHz	100 kHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Nonstandard	Nonstandard
Shielding	Unshielded	Unshielded
Size / Dimension [x]	13 mm	13 - 13.3 mm
Size / Dimension [x]	0.512 in	0.512 - 0.524 in
Size / Dimension [y]	13 mm	13 mm
Size / Dimension [y]	0.512 in	0.512 in
Tolerance	20 %	20 %

HCB1380 Series

FIXED IND 360NH 35A 0.53MOHM SMD

Part	Current - Saturation (Isat)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR)	Mounting Type	Inductance Frequency - Test	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Tolerance	Current Rating (Amps)	Package / Case
Delta Electronics/Components HCB1380-361H	43 A	13 mm	13 mm	0.512 in	0.512 in	8 mm	0.315 in	0.53 mOhm	Surface Mount	100 kHz	360 nH	125 °C	-40 °C	Unshielded	20 %	35 A	Nonstandard
Delta Electronics/Components HCB1380-251	66 A	13 mm	13 mm	0.512 in	0.512 in	8 mm	0.315 in	0.26 mOhm	Surface Mount	100 kHz	250 nH	125 °C	-40 °C	Unshielded	20 %	50 A	Nonstandard
Delta Electronics/Components HCB1380-211	80 A	13 mm	13 mm	0.512 in	0.512 in	8 mm	0.315 in	0.26 mOhm	Surface Mount	100 kHz	210 nH	125 °C	-40 °C	Unshielded	20 %	50 A	Nonstandard
Delta Electronics/Components HCB1380-441L		13 mm	13.3 mm	0.524 in	0.512 in	8.2 mm	0.323 in	0.165 mOhm	Surface Mount	100 kHz	440 nH	125 °C	-40 °C	Unshielded	20 %	68 A	Nonstandard
Delta Electronics/Components HCB1380-441H1		13 mm	13 mm	0.512 in	0.512 in	8 mm	0.315 in	0.32 mOhm	Surface Mount	100 kHz	440 nH	125 °C	-40 °C	Unshielded	20 %	45 A	Nonstandard
Delta Electronics/Components HCB1380-261H	63 A	13 mm	13 mm	0.512 in	0.512 in	8 mm	0.315 in	0.53 mOhm	Surface Mount	100 kHz	260 nH	125 °C	-40 °C	Unshielded	20 %	35 A	Nonstandard
Delta Electronics/Components HCB1380-501	28 A	13 mm	13 mm	0.512 in	0.512 in	8 mm	0.315 in	0.26 mOhm	Surface Mount	100 kHz	500 nH	125 °C	-40 °C	Unshielded	20 %	50 A	Nonstandard
Delta Electronics/Components HCB1380-361	43 A	13 mm	13 mm	0.512 in	0.512 in	8 mm	0.315 in	0.26 mOhm	Surface Mount	100 kHz	360 nH	125 °C	-40 °C	Unshielded	20 %	50 A	Nonstandard
Delta Electronics/Components HCB1380-261	63 A	13 mm	13 mm	0.512 in	0.512 in	8 mm	0.315 in	0.26 mOhm	Surface Mount	100 kHz	260 nH	125 °C	-40 °C	Unshielded	20 %	50 A	Nonstandard
Delta Electronics/Components HCB1380-211L	80 A	13 mm	13.3 mm	0.524 in	0.512 in	8.2 mm	0.323 in	0.165 mOhm	Surface Mount	100 kHz	210 nH	125 °C	-40 °C	Unshielded	20 %	68 A	Nonstandard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 1.60

Description

General part information

HCB1380 Series

500 nH Unshielded Inductor 50 A 0.26mOhm Nonstandard
