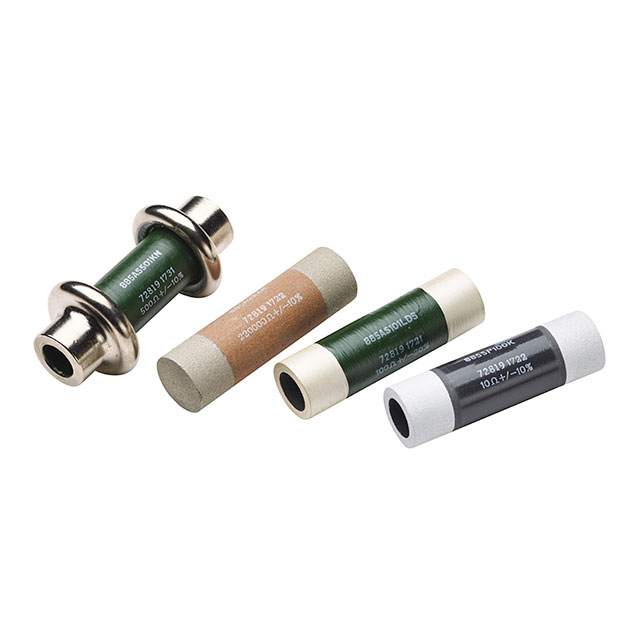

892SP400K

Active

Ohmite

RES CHAS MNT 40 OHM 10% 1000W

Search across all available documentation for this part.

Active

Ohmite

RES CHAS MNT 40 OHM 10% 1000W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	892SP400K	892SP Series

Coating, Housing Type	Ceramic	Ceramic
Composition	Ceramic	Ceramic
Features	Pulse Withstanding, Non-Inductive	Pulse Withstanding, Non-Inductive
Lead Style	Ferrule Ends	Ferrule Ends
Mounting Feature	Brackets (not included)	Brackets (not included)
Operating Temperature [Max]	350 °C	350 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Axial, Tubular	Axial, Tubular
Power (Watts)	1 kW	1 kW
Resistance	40 Ohms	40 - 600 Ohms
Size / Dimension [diameter]	2 in	2 in
Size / Dimension [diameter]	50.8 mm	50.8 mm
Size / Dimension [x]	609.6 mm	609.6 mm
Size / Dimension [x]	24 in	24 in
Temperature Coefficient [Max]	2000 ppm/°C	2000 ppm/°C
Temperature Coefficient [Min]	-800 ppm/°C	-800 ppm/°C
Tolerance	10 %	10 %

RES CHAS MNT 40 OHM 10% 1000W

Part	Temperature Coefficient [Max]	Temperature Coefficient [Min]	Coating, Housing Type	Composition	Resistance	Package / Case	Lead Style	Tolerance	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Mounting Feature	Power (Watts)	Features	Operating Temperature [Max]	Operating Temperature [Min]
Ohmite 892SP400K	2000 ppm/°C	-800 ppm/°C	Ceramic	Ceramic	40 Ohms	Axial, Tubular	Ferrule Ends	10 %	2 in	609.6 mm	50.8 mm	24 in	Brackets (not included)	1 kW	Non-Inductive, Pulse Withstanding	350 °C	-55 °C
Ohmite 892SP601K	2000 ppm/°C	-800 ppm/°C	Ceramic	Ceramic	600 Ohms	Axial, Tubular	Ferrule Ends	10 %	2 in	609.6 mm	50.8 mm	24 in	Brackets (not included)	1 kW	Non-Inductive, Pulse Withstanding	350 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 Ohms ±10% 1000W Ceramic Chassis Mount Resistor

Technical documentation and resources

No documents available
