PE4881
ActivePasternack

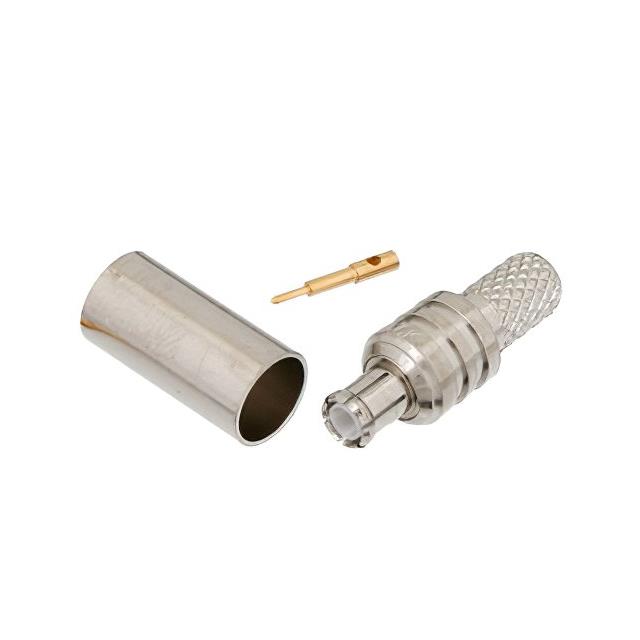

MCX PLUG CONNECTOR CRIMP/SOLDER
PE4881
ActivePasternack
MCX PLUG CONNECTOR CRIMP/SOLDER
Description
General part information
PE4881
MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE4881 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 400, RG-55, 141, 142, 223 |
| Center Contact Plating | Gold |
| Connector Style | MCX |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Crimp |
