DOUBLE TAIL PRESS-FIT PIN
5011-1-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
DOUBLE TAIL PRESS-FIT PIN
Description
General part information
5011-1-00-15-00-00-03-0

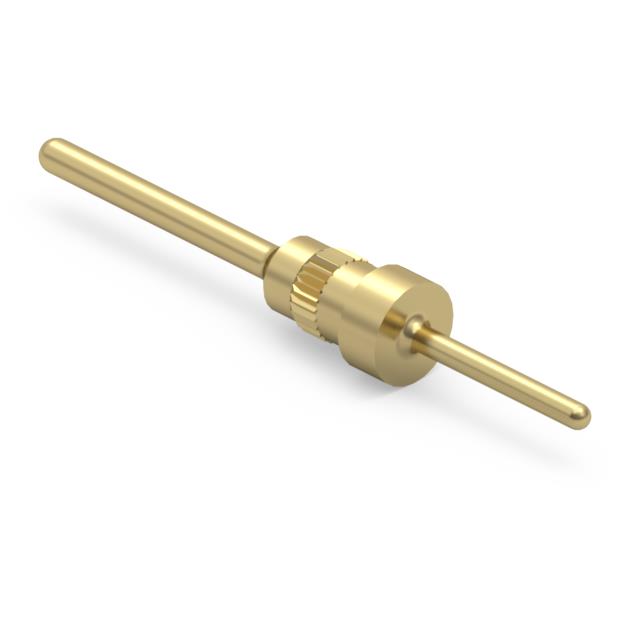

PC Pin Terminal Connector Through Hole Gold 0.024" (0.61mm) Dia
Technical Specifications
Parameters and characteristics for this part
| Specification | 5011-1-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Contact Material | Brass Alloy |
| Flange Diameter | 0.072 in |
| Insulation | Non-Insulated |
| Length - Above Flange | 0.392 in |
| Length - Below Flange | 0.157 in |
| Length - Overall | 0.582 in |
| Mounting Hole Diameter | 0.057 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange (Diameter) | 0.024 in |
| Pin Size - Below Flange Diameter | 0.018 in |
| Terminal Style | Double End |
| Terminal Type | PC Pin |
| Termination | Press-Fit, Knurled |
