Q-0101Z0001048i

Active

Amphenol Custom Cable

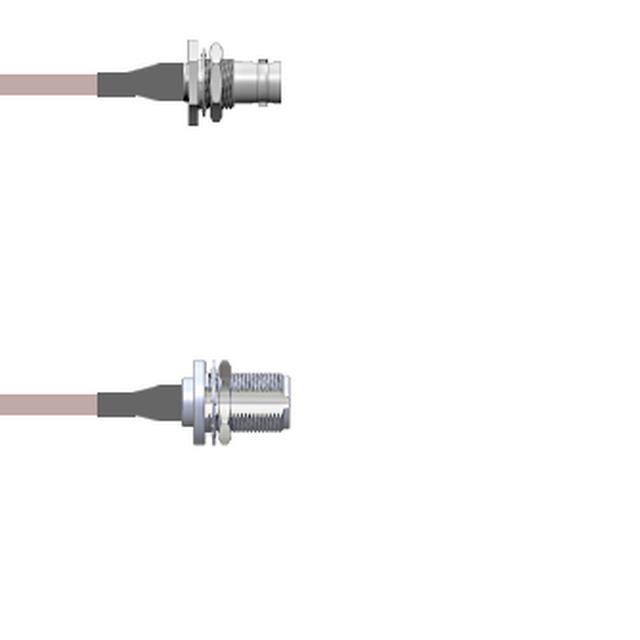

CBL ASSY BNC-NTYPE JACK-JACK 4'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0101Z0001048i

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE JACK-JACK 4'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-0101Z0001048i	Q-0101Z0 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	N-Type Jack	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount	Panel Mount
2nd Contact Gender	Female	Female
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	1200 mm	1 - 1200 m
Length	4 ft	3.3 - 9.8 ft
Length	48 in	3 - 118.1 in
Length	-	457.2 mm
Length	-	250 - 457.2 mm
Length	-	9.843 "
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to N-Type	BNC to N-Type

Q-0101Z0 Series

CBL ASSY BNC-NTYPE JCK-JCK 6.6'

Part	2nd Contact Gender	Style	1st Connector Mounting Feature	Color	2nd Connector Mounting Type	1st Connector Mounting Type	Cable Type	2nd Connector Mounting Feature	1st Connector	2nd Connector	Length	Length	Length	Overall Impedance	1st Contact Gender	Features	Frequency - Max [Max]	Length [x]	Length [x]
Amphenol Custom Cable Q-0101Z0001002M	Female	BNC to N-Type	Bulkhead - Front Side Nut	Copper	Panel Mount	Panel Mount	RG-178	Bulkhead - Front Side Nut	BNC Jack	N-Type Jack	6.6 ft	78.7 in	2 m	50 Ohms	Female	Shielded	4 GHz
Amphenol Custom Cable Q-0101Z0001003M	Female	BNC to N-Type	Bulkhead - Front Side Nut	Copper	Panel Mount	Panel Mount	RG-178	Bulkhead - Front Side Nut	BNC Jack	N-Type Jack	9.8 '	118.1 in	3 m	50 Ohms	Female	Shielded	4 GHz
Amphenol Custom Cable Q-0101Z00010.5M	Female	BNC to N-Type	Bulkhead - Front Side Nut	Copper	Panel Mount	Panel Mount	RG-178	Bulkhead - Front Side Nut	BNC Jack	N-Type Jack		19.69 "	50 cm	50 Ohms	Female	Shielded	4 GHz
Amphenol Custom Cable Q-0101Z0001024i	Female	BNC to N-Type	Bulkhead - Front Side Nut	Copper	Panel Mount	Panel Mount	RG-178	Bulkhead - Front Side Nut	BNC Jack	N-Type Jack		24 "	609.6 mm	50 Ohms	Female	Shielded	4 GHz
Amphenol Custom Cable Q-0101Z00012.5M	Female	BNC to N-Type	Bulkhead - Front Side Nut	Copper	Panel Mount	Panel Mount	RG-178	Bulkhead - Front Side Nut	BNC Jack	N-Type Jack	8.2 '	98.4 in	2.5 m	50 Ohms	Female	Shielded	4 GHz
Amphenol Custom Cable Q-0101Z0001072i	Female	BNC to N-Type	Bulkhead - Front Side Nut	Copper	Panel Mount	Panel Mount	RG-178	Bulkhead - Front Side Nut	BNC Jack	N-Type Jack	6 ft	72 in	1.8 m	50 Ohms	Female	Shielded	4 GHz
Amphenol Custom Cable Q-0101Z0001018i	Female	BNC to N-Type	Bulkhead - Front Side Nut	Copper	Panel Mount	Panel Mount	RG-178	Bulkhead - Front Side Nut	BNC Jack	N-Type Jack				50 Ohms	Female	Shielded	4 GHz	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0101Z0001084i	Female	BNC to N-Type	Bulkhead - Front Side Nut	Copper	Panel Mount	Panel Mount	RG-178	Bulkhead - Front Side Nut	BNC Jack	N-Type Jack	7 ft	84 in	2.1 m	50 Ohms	Female	Shielded	4 GHz
Amphenol Custom Cable Q-0101Z0001.75M	Female	BNC to N-Type	Bulkhead - Front Side Nut	Copper	Panel Mount	Panel Mount	RG-178	Bulkhead - Front Side Nut	BNC Jack	N-Type Jack		29.53 "	750 mm	50 Ohms	Female	Shielded	4 GHz
Amphenol Custom Cable Q-0101Z00011.5M	Female	BNC to N-Type	Bulkhead - Front Side Nut	Copper	Panel Mount	Panel Mount	RG-178	Bulkhead - Front Side Nut	BNC Jack	N-Type Jack	4.9 ft	59.1 in	1.5 m	50 Ohms	Female	Shielded	4 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 87.94
		25	$ 86.23
		50	$ 84.53
		100	$ 82.83
		250	$ 81.13

Description

General part information

Q-0101Z0 Series

Cable Assembly Coaxial BNC to N-Type RG-178 48.0" (1.2m) 4.0'

Documents

Technical documentation and resources

No documents available
