PM8918/301
ObsoleteFluke Electronics
OSCOPE PROBE X10 4KHZ 10M
PM8918/301
ObsoleteFluke Electronics
OSCOPE PROBE X10 4KHZ 10M
Description
General part information
PM8918/301
10:1 Filter Probe, Low Pass 4kHz 96.000" (2438.40mm) Blue Oscilloscope Probe Test Lead 10M Input Resistance CAT II 600VRMS
Technical Specifications
Parameters and characteristics for this part
| Specification | PM8918/301 |
|---|---|
| Attenuation Value | 10 :1 |
| Bandwidth | 4 kHz |
| Cable Length | 8 ft |
| Capacitance - Input | 12.5 pF |
| Color | Blue |

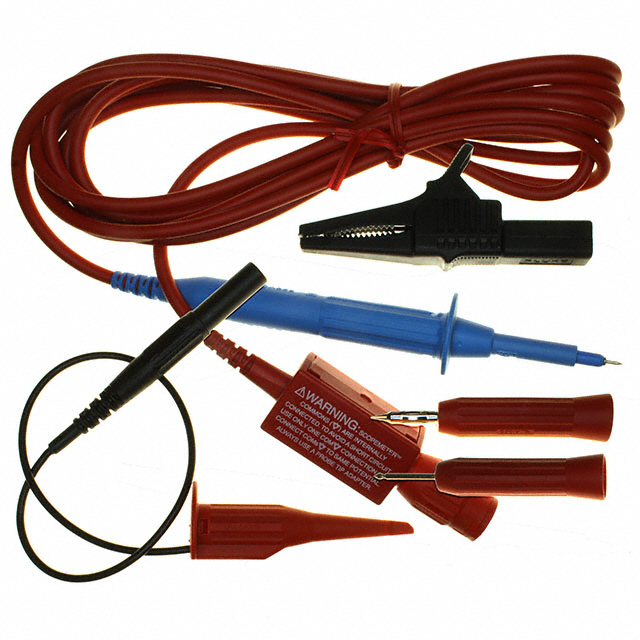

| Includes | Adapter, Test Hook, Alligator Clip, Test Pin |
| Resistance - Input | 10 MOhm |
| Type | Filter Probe, Low Pass |
| Voltage - Max (CAT II) | 600 VRMS |
| Voltage - Max Category | CAT II |
