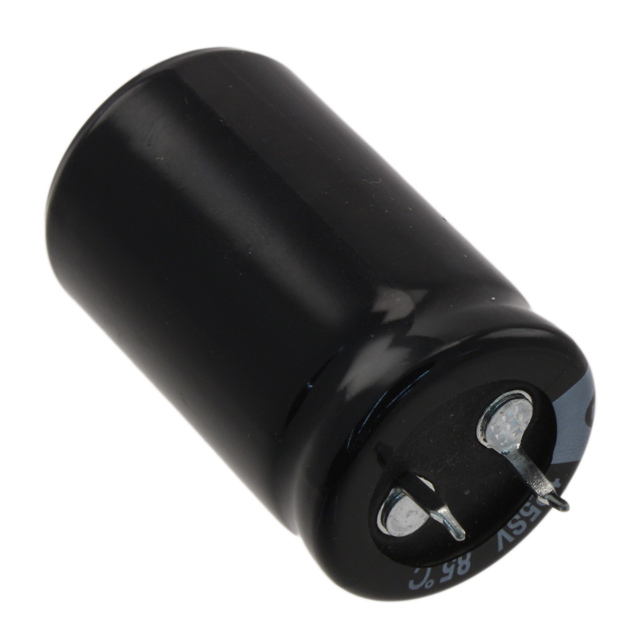

Specification	SLPX562M063C4P3

Applications	General Purpose
Capacitance	5600 µF
ESR (Equivalent Series Resistance)	71 mOhm
Height - Seated (Max)	1.772 in
Lead Spacing	0.394 in
Lifetime	3000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	4.01 A, 5.01 A
Size / Dimension Diameter	0.984 in
Tolerance	20 %
Voltage - Rated	63 V
