MOT-I-81683-102
ActiveISL Products International

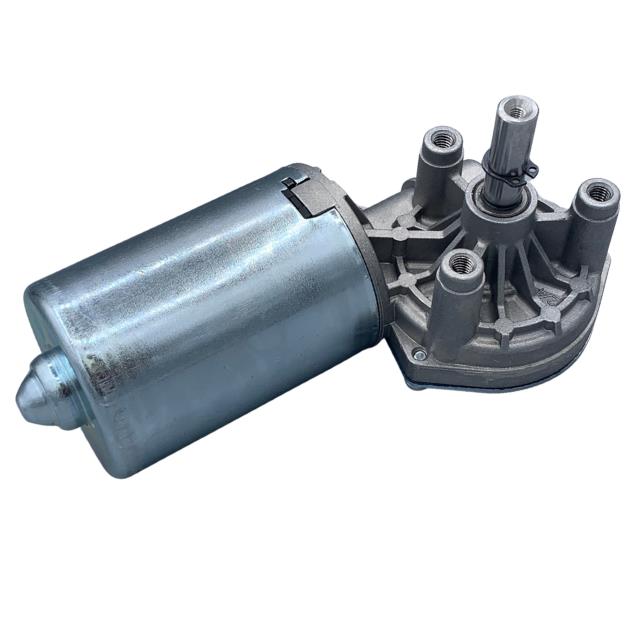

59MM WORM GEAR MOTOR, RIGHT SIDE
MOT-I-81683-102
ActiveISL Products International
59MM WORM GEAR MOTOR, RIGHT SIDE
Description
General part information
MOT-I-81683-102
Brushed DC Motor Gearmotor 176 RPM 45W 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | MOT-I-81683-102 |
|---|---|
| Diameter - Shaft | 0.394 in |
| Function | Gearmotor |
| Length - Shaft and Bearing | 1.22 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 2 in |
| Power - Rated | 45 W |
| RPM | 176 RPM |
| Size / Dimension Length | 2.323 in |
| Size / Dimension Shape | Round |
| Termination Style | Wire Leads with Connector |
| Torque - Max Momentary (mNm) | 9806.65 mNm |
| Torque - Max Momentary (oz-in) | 1388.74 oz-in |
| Torque - Rated (mNm) | 2402.72 mNm |
| Torque - Rated (oz-in) | 340.31 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VAC |
