086-18SMR+

Active

MINI-CIRCUITS

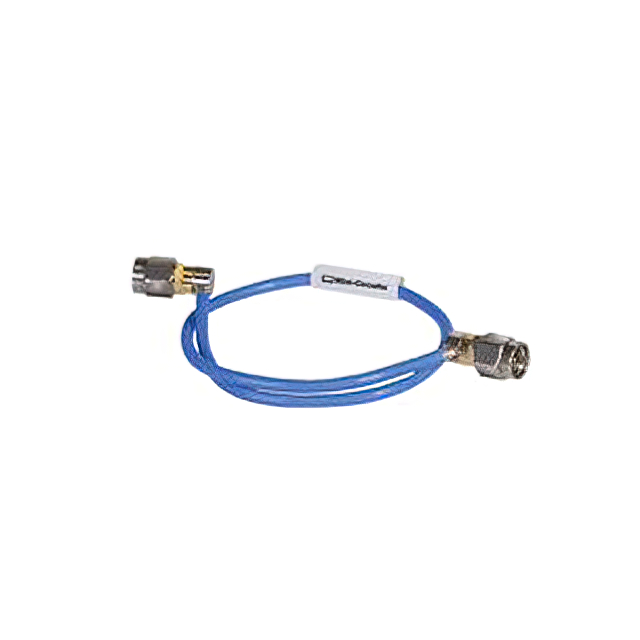

CBL ASSY SMA PLUG TO PLUG 18"

Search across all available documentation for this part.

Active

MINI-CIRCUITS

CBL ASSY SMA PLUG TO PLUG 18"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA Hand Formable .086 18.00" (457.20mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CBL ASSY SMA PLUG TO PLUG 18"

Part	2nd Connector	1st Connector Mounting Type	Color	Overall Impedance	2nd Connector Mounting Type	1st Connector	2nd Contact Gender	1st Contact Gender	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Cable Type	Frequency - Max [Max]	Style	Style [Min]	Style [Max]	2nd Connector
MINI-CIRCUITS 086-18SMR+	SMA Plug, Right Angle	Free Hanging (In-Line)	Blue	50 Ohms	Free Hanging (In-Line)	Right Angle, SMA Plug	Male	Male	457.2 mm	457.2 mm	105 ░C	-55 °C	Hand Formable	0.086	18 GHz	SMA to SMA
MINI-CIRCUITS 086-18SM+	SMA Plug	Free Hanging (In-Line)	Blue	50 Ohms	Free Hanging (In-Line)	SMA Plug	Male	Male	457.2 mm	457.2 mm	105 ░C	-55 °C	Hand Formable	0.086	18 GHz	SMA to SMA
MINI-CIRCUITS 086-18KM+		Free Hanging (In-Line)	Blue	50 Ohms	Free Hanging (In-Line)	2.92mm Plug	Male	Male	457.2 mm	457.2 mm	85 °C	-55 °C	Hand Formable	0.086	40 GHz		2.92 mm	2.92 mm	2.92 mm
