796348-2
ObsoleteTE Connectivity AMP Connectors

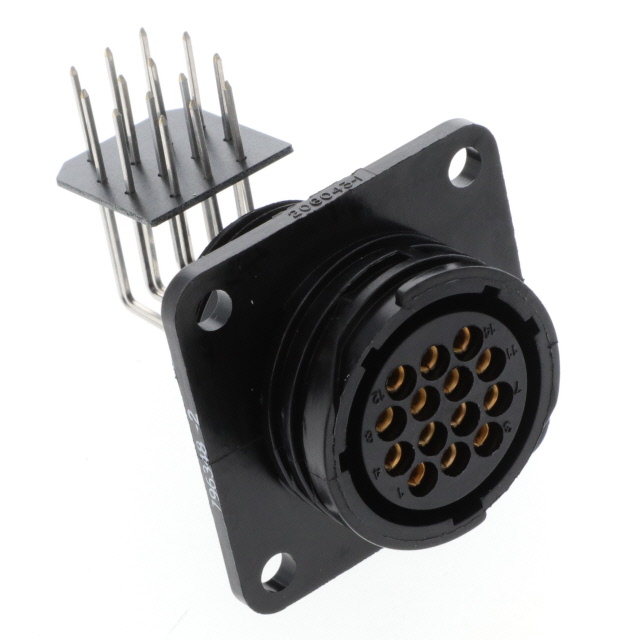

CONN RCPT FMALE 14P GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
796348-2
ObsoleteTE Connectivity AMP Connectors
CONN RCPT FMALE 14P GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 796348-2 | 796348 Series |
|---|---|---|
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 - 100 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 - 2.54 Ám |
| Contact Material | Brass | Brass |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Flange | Flange |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 14 | 14 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shell Size - Insert | 17-14 | 17-14 |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
796348 Series
CONN RCPT FMALE 14P GOLD SOLDER
| Part | Contact Finish - Mating | Material Flammability Rating | Primary Material | Orientation | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Feature | Mounting Type | Voltage Rating | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Connector Type | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 796348-2 | Gold | UL94 V-0 | Plastic | Keyed | Brass | 30 Áin | 0.76 Ám | Flange | Panel Mount, Right Angle, Through Hole | 250 VAC | 14 | 105 ░C | -55 °C | Solder | Receptacle, Female Sockets | 17-14 |
TE Connectivity AMP Connectors 796348-1 | Tin-Lead | UL94 V-0 | Plastic | Keyed | Brass | 100 çin | 2.54 çm | Flange | Panel Mount, Right Angle, Through Hole | 250 VAC | 14 | 105 ░C | -55 °C | Solder | Receptacle, Female Sockets | 17-14 |
