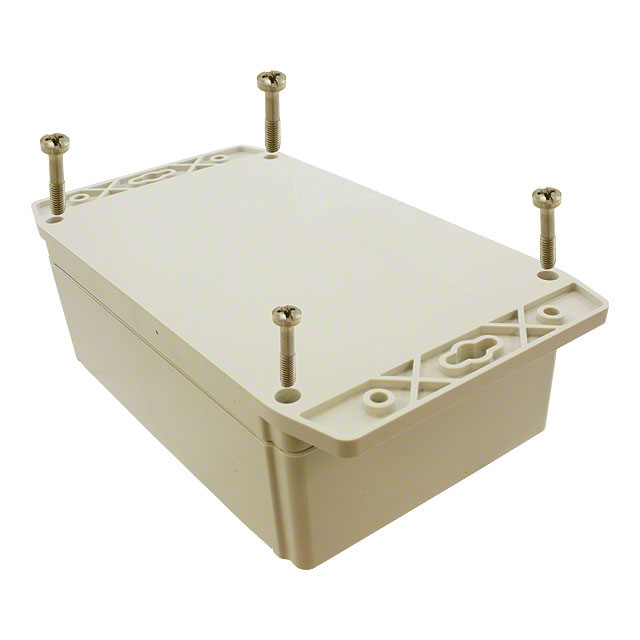

Specification	1555HF42GY

Area (L x W)	33.5 in²
Color	Gray
Container Type	Box
Design	Cover Included
Features	Watertight, PCB Supports, Mounting Flange
Height	2.441 in
Material	Polycarbonate, ABS
Material Flammability Rating	UL94 HB
Ratings	NEMA, IP67, 4X, 13, 12, 4
Size / Dimension Length	7.086 in
Size / Dimension Width	4.723 in
Thickness	0.157 in

1555 Series

Part	Material	Area (L x W)	Container Type	Material Flammability Rating	Color	Height	Thickness	Features	Ratings	Size / Dimension Width	Size / Dimension Length	Design	Weight
Hammond Manufacturing 1555NF42GY	ABS Polycarbonate	22.3 in²	Box	UL94 HB	Gray	2.441 in	0.157 in	Mounting Flange PCB Supports Watertight	12 13 4 4X IP67 NEMA	4.723 in	4.723 in	Cover Included
Hammond Manufacturing 1555F2GY	Polycarbonate	16.7 in²	Box	UL94 5VA UL94 V-0	Gray	2.362 in	0.118 in	Card Guides PCB Supports Watertight	12 13 4X IP68 NEMA 4 UL-508	3.543 in	4.724 in	Cover Included	0.4 lb
Hammond Manufacturing 1555JGY	ABS Polycarbonate	22.3 in²	Box	UL94 HB	Gray	2.362 in	0.128 in	Card Guides PCB Supports Watertight	12 13 4X IP66 NEMA 4	3.543 in	6.299 in	Cover Included
Hammond Manufacturing 1555G2GY	Polycarbonate	16.7 in²	Box	UL94 5VA UL94 V-0	Gray	3.15 in	0.118 in	Card Guides PCB Supports Watertight	12 13 4X IP68 NEMA 4 UL-508	3.543 in	4.724 in	Cover Included	0.52 lb
Hammond Manufacturing 1555YAGY	ABS Polycarbonate	112 in²	Box	UL94-HB	Gray	4.72 in	0.16 in		IP66	9.45 in	11.81 in	Cover Included Hand Held
Hammond Manufacturing 1555D2GY	Polycarbonate	12.1 in²	Box	UL94 5VA UL94 V-0	Gray	2.362 in	0.118 in	Card Guides PCB Supports Watertight	12 13 4X IP68 NEMA 4 UL-508	2.559 in	4.724 in	Cover Included	0.15 lbs
Hammond Manufacturing 1555UGY	ABS Polycarbonate	37.2 in²	Box	UL94 HB	Gray	3.543 in	0.118 in	Card Guides PCB Supports Watertight	12 13 4X IP66 NEMA 4	4.724 in	7.874 in	Cover Included
Hammond Manufacturing 1555K2GY	Polycarbonate	22.3 in²	Box	UL94 5VA UL94 V-0	Gray	3.543 in	0.118 in	Card Guides PCB Supports Watertight	12 13 4X IP68 NEMA 4 UL-508	3.543 in	6.299 in	Cover Included	0.65 lb
Hammond Manufacturing 1555EGY	ABS Polycarbonate	12.6 in²	Box	UL94 HB	Gray	2.362 in	0.118 in	Card Guides PCB Supports Watertight	12 13 4X IP66 NEMA 4	3.543 in	3.543 in	Cover Included
Hammond Manufacturing 1555JF42GY	ABS Polycarbonate	22.4 in²	Box	UL94 HB	Gray	2.441 in	0.157 in	Mounting Flange PCB Supports Watertight	12 13 4 4X IP67 NEMA	3.574 in	6.297 in	Cover Included
