Description
General part information

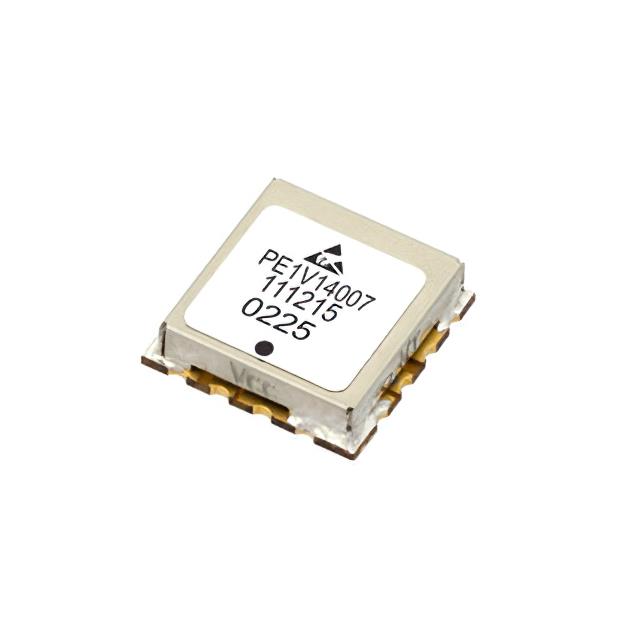

PE1V14007
2.2GHz Center Frequency 0 V ~ 4.5 V Voltage Controlled Oscillator 4.5 ±1.5 dBm -35 2nd Harmonic Typ (dBc)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE1V14007 |
|---|---|
| 2nd Harmonic (Typ) (dBc) | -35 dBc |
| Frequency - Center | 2.2 GHz |
| Frequency Range (Max) | 2300 MHz |
| Frequency Range (Min) | 2100 MHz |
| Height | 0.126 in |
| Icc Max | 18 mA |
| Maximum Tuning Voltage (VDC) | 4.5 V |
| Minimum Tuning Voltage (VDC) | 0 V |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 16-SMD, No Lead |
| Phase Noise Typ (dBc/Hz) | -101 dBc/Hz |
| Power (dBm) (Nominal) | 4.5 dBm |
| Power (dBm) Tolerance | 1.5 dBm |
| Pushing (MHz/V) | 2.5 MHz/V |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.5 in |
| Voltage - Supply | 5 VDC |
