S6440
ActiveHeyco Products Corporation
SUNRUNNER 4-EZ CLIP BULK
S6440
ActiveHeyco Products Corporation
SUNRUNNER 4-EZ CLIP BULK
Description
General part information
S6440

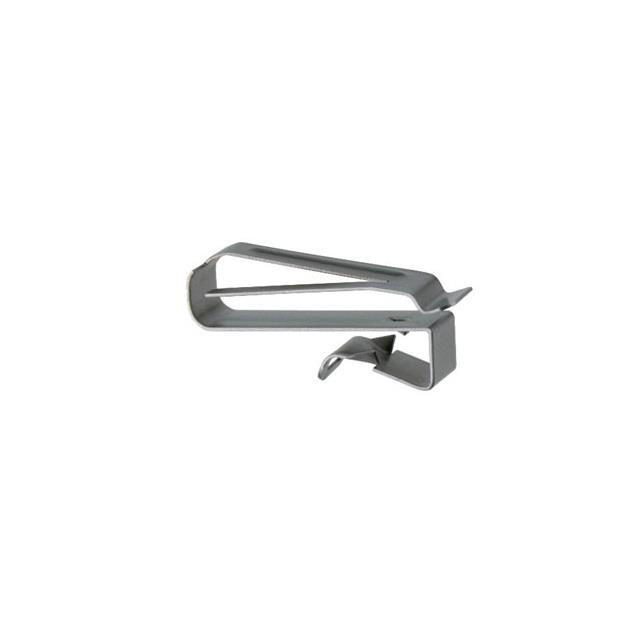

Cable Clip, C-Type Silver Edge Mount, Clip On 0.200" ~ 0.300" (5.08mm ~ 7.62mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | S6440 |
|---|---|
| Color | Silver |
| Height | 0.36 in |
| Length | 1.33 in |
| Material | Stainless Steel (SS) |
| Material Thickness | 0.02 in |
| Mounting Type | Clip On, Edge Mount |
| Opening Size (Max) | 0.3 in |
| Opening Size (Min) | 0.2 in |
| Panel Thickness | 0.25 in |
| Type | Clip, C-Type |
| Type Attributes | Split |
| Width | 12.7 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
