1176L SL001

Active

ALPHA WIRE

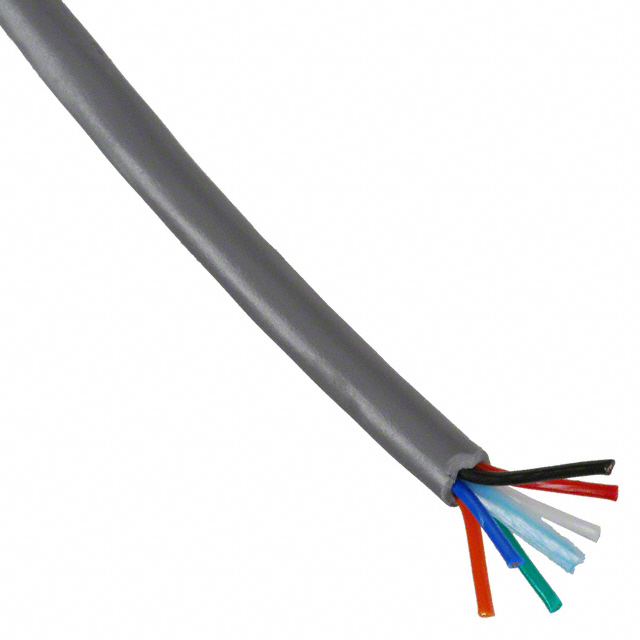

CABLE 6COND 22AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 6COND 22AWG SLATE 1000'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1176L SL001	1176L Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Low Smoke Zero Halogen (LSZH)	Low Smoke Zero Halogen (LSZH)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Diameter [diameter]	0.209 in	0.209 in
Jacket (Insulation) Diameter [diameter]	5.31 mm	5.31 mm
Jacket (Insulation) Thickness	0.025 in	0.025 in
Jacket (Insulation) Thickness	0.635 mm	0.635 mm
Jacket Color	Slate	Slate
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	500 '
Length	-	152.4 m
Number of Conductors	6	6
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

CABLE 6COND 22AWG SLATE 1000'

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Wire Gauge	Jacket Color	Conductor Material	Voltage	Length	Length	Conductor Insulation	Cable Type	Length [x]	Length [x]
ALPHA WIRE 1176L SL001	0.025 in	0.635 mm	6	0.209 in	5.31 mm	7	30 AWG	Communication, Control	22 AWG	Slate	Copper, Tinned	300 V	1000 ft	304.8 m	Low Smoke Zero Halogen (LSZH)	Multi-Conductor
ALPHA WIRE 1176L SL002	0.025 in	0.635 mm	6	0.209 in	5.31 mm	7	30 AWG	Communication, Control	22 AWG	Slate	Copper, Tinned	300 V			Low Smoke Zero Halogen (LSZH)	Multi-Conductor	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 767.30
